Case Cover and 3-5-Reverse and 4-5-6 Clutch Housing Removal Automatic Transmission Unit

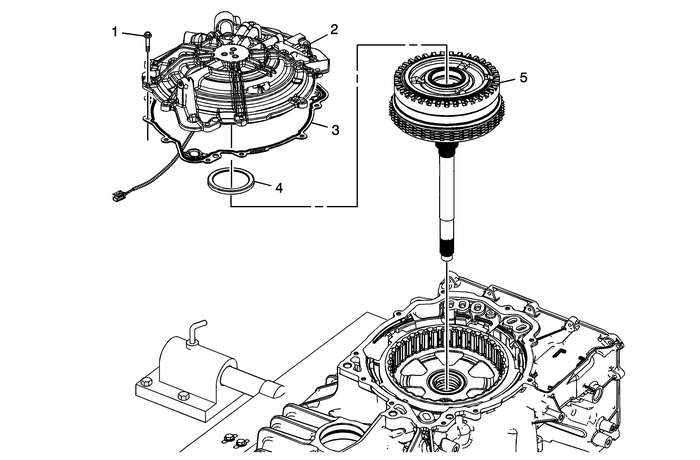

Case Cover and 3-5-Reverse and 4-5-6 Clutch Housing Removal

Callout

Component Name

1

A/Trans Case Cover Assembly Bolt-M6-x-30-(Qty:-10)

2

A/Trans Case Cover Assembly

Caution:Use care when pulling the input speed sensor wire harnessthrough the case to avoid damaging the harness.

3

A/Trans Case Cover Gasket

Note:The gasket is not reusable.

4

Input Shaft Thrust Bearing Assembly

Note:The bearing may be stuck to the case cover.

5

3–5 Rev/4–5–6 Clutch Housing Assembly

Case - Torque Converter and Differential Housing Side Automatic Transmission Unit
Case-–-Torque Converter andDifferential Housing Side(2)Line(7)Cooler Feed(8)Lube(9)Regulated Apply(10)Exhaust Backfill(12)PCS Line(21)35 Reverse Clutch(32)26 Clutch(33)456 Clutch(34)PCS TCC(38)Seal ...

Case Cover Assembly Installation Automatic Transmission Unit
Case Cover Assembly InstallationCalloutComponent Name1Input Shaft Thrust BearingNote:Note location of the orientation lip on bearing. All thrust bearings can only be assembledone way.2A/Trans Case Cov ...
