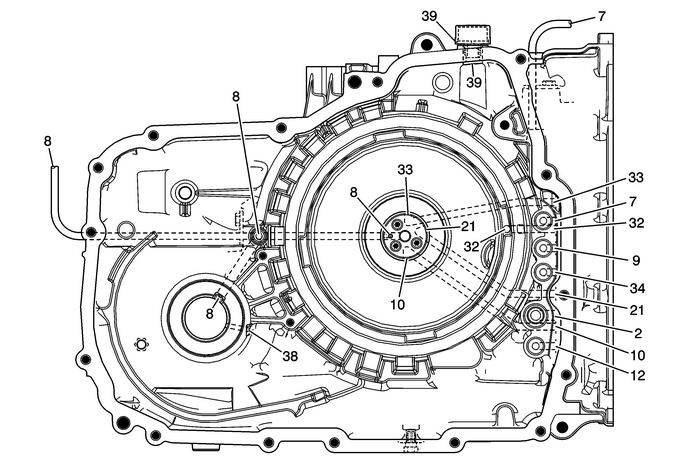

Case - Torque Converter and Differential Housing Side Automatic Transmission Unit

(2)Line
(7)Cooler Feed
(8)Lube
(9)Regulated Apply
(10)Exhaust Backfill
(12)PCS Line
(21)35 Reverse Clutch
(32)26 Clutch
(33)456 Clutch
(34)PCS TCC
(38)Seal Drainback
(39)Vent
