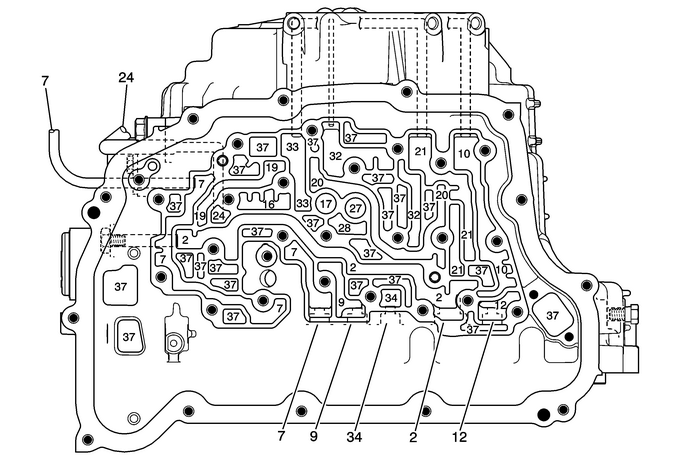

Case-–-Control Valve BodySide
| (2) | Line |
| (7) | Cooler Feed |
| (9) | Regulated Apply |
| (10) | Exhaust Backfill |
| (12) | PCS Line |
| (16) | R1/456 Clutch Feedback |
| (17) | R1 |
| (19) | Reverse |
| (20) | 35 Reverse Clutch Feed |
| (21) | 35 Reverse Clutch |
| (24) | Auxiliary Line (BAS+Only) |
| (27) | 1234 Clutch |
| (28) | 1234 Clutch Feedback |
| (32) | 26 Clutch |
| (33) | 456 Clutch |
| (34) | PCS TCC |
| (37) | Void |
