Front Floor Console Flood Lamp Replacement Consoles Center Console

Front Floor Console Flood Lamp Replacement

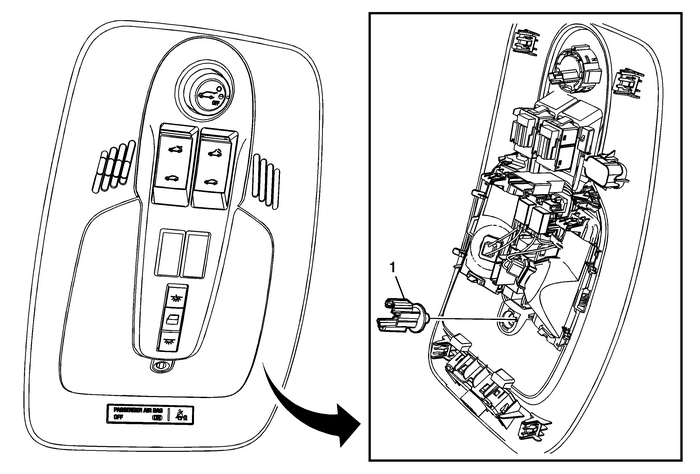

Callout

Component Name

Preliminary Procedure

Remove the roof console. Refer toRoof Console Replacement.

1

Front Floor Console Flood Lamp

Procedure

Disconnect electrical connector.

Front Floor Console Armrest Replacement Consoles Center Console
Front Floor Console Armrest ReplacementCalloutComponent Name1Front Floor Console Rear CoverRefer toFront Floor Console Rear Cover Replacement.2Front Floor Console Armrest Fasteners(Qty:-4)Caution:Refe ...

Front Floor Console Rear Cover Replacement Consoles Center Console
Front Floor Console Rear Cover ReplacementCalloutComponent Name1Front Floor Console Rear CoverProceduresGrasp the console rear cover and pull it rearward away fromthe console assembly.Disconnect the e ...
