Driver or Passenger Seat Retractor Side Belt Replacement Seats

Driver or Passenger Seat Retractor Side Belt Replacement

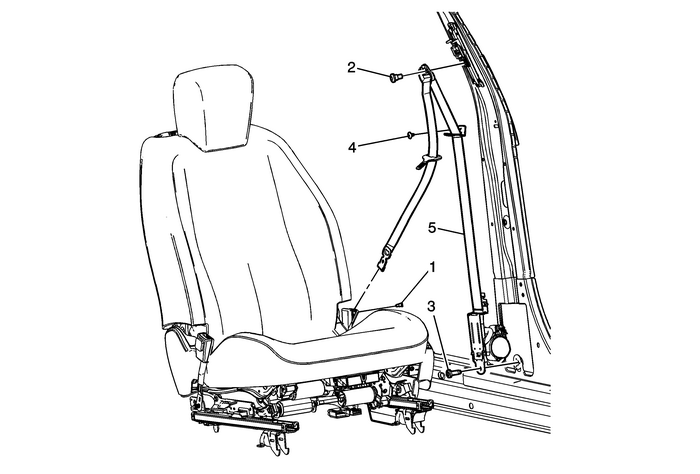

Callout

Component Name

Warning:In order to prevent accidental deployment and the risk ofpersonal injury, do not dispose of an undeployed inflatablerestraint seat belt pretensioner as normal shop waste. Undeployedseat belt pretensioners contain substances that could cause severeillness or personal injury if their sealed containers are damagedduring disposal. Use the following deployment procedures to safelydispose of an undeployed seat belt pretensioner. Failure to observethe following disposal methods may be a violation of federal,state, or local laws.

Warning:Refer toSIR Warning.

Warning:Refer toSIR Inflator Module Handling and Storage Warning.

Preliminary ProceduresMove the front seat to a full forward and full up position.Disable the SIR. Refer toSIR Disabling and Enabling.Remove the upper and lower center pillar trim panel. Refer toCenter Pillar Upper Trim Panel ReplacementandCenter Pillar Lower Trim Panel Replacement.

1

Front Seat Belt Tensioner Fastener

Caution:Refer toFastener Caution.

Tighten

7.5-Y (66-lb-in)

2

Driver or Passenger Seat Shoulder Belt Guide Fastener

Tighten

45-Y (33-lb-ft)

3

Driver or Passenger Seat Shoulder Belt Retractor Fastener

Tighten

45-Y (33-lb-ft)

4

Driver or Passenger Seat Belt Push On Retainer

Procedure

Use a flat-bladed tool to remove locking pin in retainer.

5

Driver or Passenger Seat Retractor Side Belt Assembly

ProcedureDisconnect the electrical connector.Refer toPretensioner Handling and Scrapping.
