Rear Window Wiper Arm Replacement (Terrain) Wipers Wiper Arm

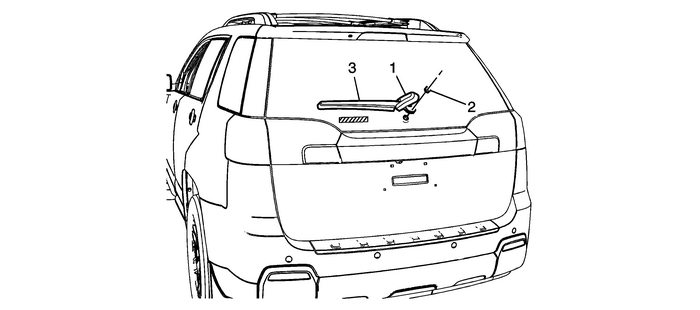

Rear Window Wiper Arm Replacement

Callout

Component Name

1

Rear Window Wiper Arm Nut Cover

Tip:Lift the wiper arm nut cover in order to access the wiper arm nut.

2

Rear Window Wiper Arm Nut

Caution:Refer toFastener Caution.

Tighten

8-Y (71-lb-in)

3

Rear Window Wiper Arm

ProcedureRemove the rear window wiper arm.Clean the knurls on the wiper motor pivot shaft with a soft wire brush.Electrically park the rear wiper arm motor.Position the arm to the pivot shaft and rear window.Align the rear wiper blade to the lower blackout edge as shown.Hold the wiper blade in position while securing the wiper arm nut.

Special Tools

J-39637 Wiper Arm Puller

For equivalent regional tools, refer toSpecial Tools.
