Rear Window Wiper Blade Replacement (Terrain) Wipers Wiper Blade

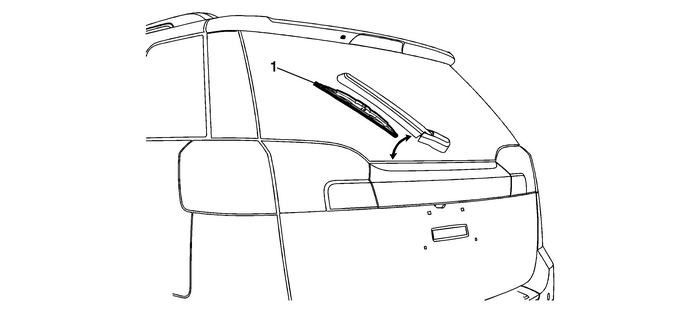

Rear Window Wiper Blade Replacement

Callout

Component Name

1	Rear Window Wiper Blade ProcedureLift the rear wiper arm off the rear window.Disengage the inner wiper blade from the wiper arm coverretention clips.Remove the rear window wiper blade.

Rear Window Wiper Arm Replacement (Terrain) Wipers Wiper Arm

Rear Window Wiper Arm ReplacementCalloutComponent Name1Rear Window Wiper Arm Nut CoverTip:Lift the wiper arm nut cover in order to access the wiper arm nut.2Rear Window Wiper Arm NutCaution:Refer toFa ...

Rear Window Wiper Motor Grommet Replacement (Terrain) Wipers Wiper Motor

Rear Window Wiper Motor Grommet ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear window wiper arm. Refer toRear Window Wiper Arm Replacement.Remove the rear window wiper motor. Re ...
