Rear Window Wiper Motor Grommet Replacement (Terrain) Wipers Wiper Motor

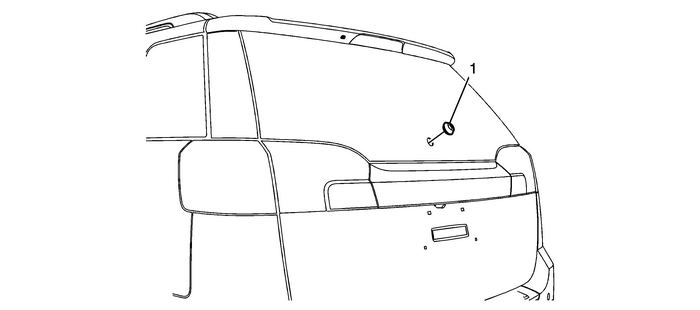

Rear Window Wiper Motor Grommet Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear window wiper arm. Refer toRear Window Wiper Arm Replacement.Remove the rear window wiper motor. Refer toRear Window Wiper Motor Replacement.

1

Rear Window Wiper Motor Grommet

Tip:Apply a very small amount of lithium grease to the innergrommet where the grommet seals to the glass, to a aid in theinstallation of the grommet.

Rear Window Wiper Blade Replacement (Terrain) Wipers Wiper Blade
Rear Window Wiper Blade ReplacementCalloutComponent Name1Rear Window Wiper BladeProcedureLift the rear wiper arm off the rear window.Disengage the inner wiper blade from the wiper arm coverretention c ...

Rear Window Wiper Motor Replacement (Terrain) Wipers Wiper Motor
Rear Window Wiper Motor ReplacementCalloutComponent NamePreliminary ProceduresRemove the rear window wiper arm. Refer toRear Window Wiper Arm Replacement.Open and support the rear liftgate.Remove the ...
