Rear Window Wiper Motor Replacement (Terrain) Wipers Wiper Motor

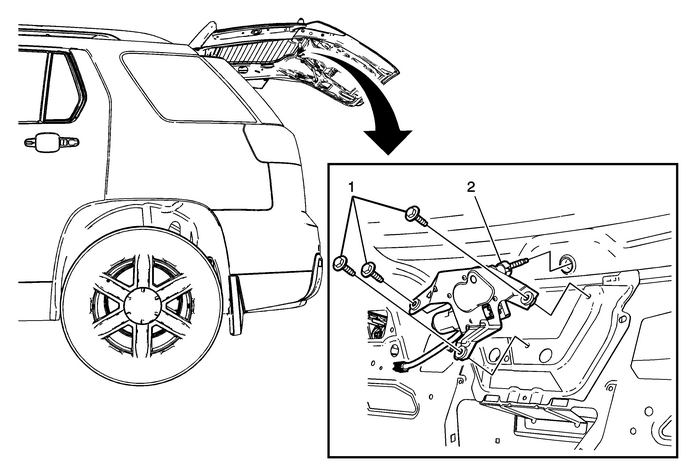

Rear Window Wiper Motor Replacement

Callout

Component Name

Preliminary ProceduresRemove the rear window wiper arm. Refer toRear Window Wiper Arm Replacement.Open and support the rear liftgate.Remove the liftgate lower trim finish panel. Refer toLiftgate Lower Trim Finish Panel Replacement.

Rear Window Wiper Motor Bolt (Qty:-3)

Caution:Refer toFastener Caution.

Tighten

9-Y(80-lb-in)

Rear Window Wiper Motor

ProcedurePull the wiper motor assembly from the liftgate windowgrommet.Disconnect the rear wiper motor electrical connector.Remove the rear wiper motor from the vehicle.
