Evaporative Emission Canister Purge Solenoid Valve Replacement Emissions Evap Evap Canister Purge

Evaporative Emission Canister Purge Solenoid Valve Replacement

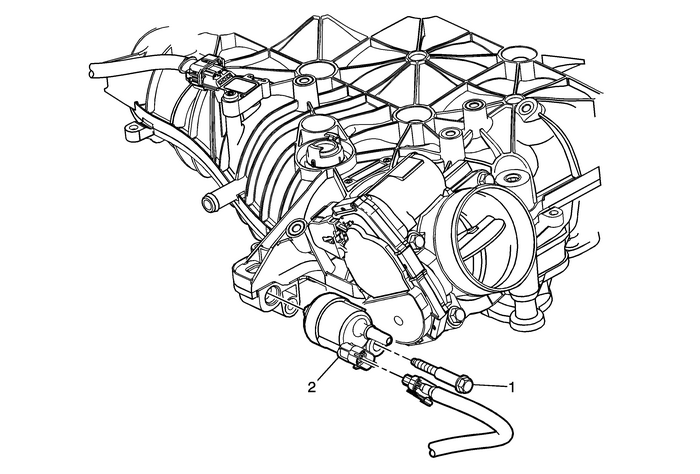

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

1

Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y (89-lb-in)

2

Evaporative Emission Canister Purge Solenoid Valve

ProcedureDisconnect the EVAP canister purge solenoid harness connector.Install a NEW O-ring.
Primary Timing Chain Guide Installation - Upper Valvetrain Valvetrain Timing Timing Belt/Chain
Ensure the upper primary camshaft drive chainguide-(3) is being installed.Install the upper primary camshaft drive chain guides.Caution:Refer toFastener Caution.Install the upper primary camshaft driv ...

Evaporative Emission Canister Purge Solenoid Valve Replacement Emissions Evap Evap Canister Purge
Evaporative Emission Canister Purge Solenoid Valve ReplacementCalloutComponent NamePreliminary ProceduresRemove the intake manifold cover. Refer toIntake Manifold Cover Replacement.Disconnect the evap ...
