Air Conditioning Evaporator Core Replacement Evaporator

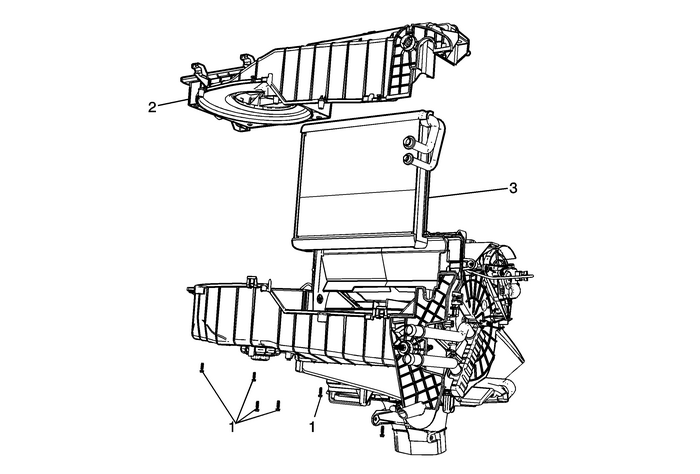

Air Conditioning Evaporator Core Replacement

Callout

Component Name

Preliminary ProceduresRemove the thermal expansion valve. Refer toAir Conditioning Evaporator Thermal Expansion Valve Hose ReplacementRemove the heater and air conditioning evaporator and blowermodule. Refer toHeater and Air Conditioning Evaporator and Blower Module Removal and Installation.Remove the heater core. Refer toHeater Core ReplacementDisconnect the Heater and air conditioning evaporator andBlower module assembly electrical connectors.

1

Heater and Air Conditioning Evaporator and Blower Module CaseScrew (Qty:-6)

Caution:Refer toFastener Caution.

Tighten

1.5Y-(13-lb-in)

2

Upper Heater Case.

3

Air Conditioning Evaporator Core
