Air Conditioning Evaporator and Blower Module Drain Hose Replacement Evaporator

Air Conditioning Evaporator and Blower Module Drain Hose Replacement

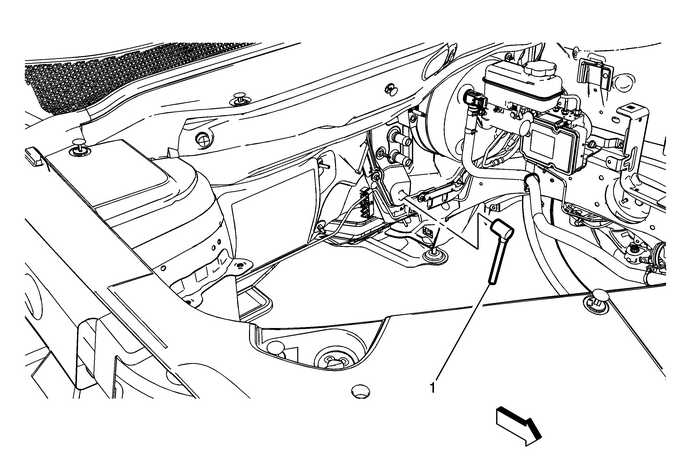

Callout

Component Name

Preliminary ProceduresRemove the air cleaner outlet resonator assembly. Refer toAir Cleaner Outlet Resonator Replacementfor 2.4L engine assembly.Remove the intake manifold cover assembly. Refer toIntake Manifold Cover Replacementfor the 2.4L engine assembly, or theIntake Manifold Cover Replacementfor the 3.4L engine assembly.
1	Air Conditioning Evaporator and Blower Case Drain Hose
