Air Conditioning Evaporator Thermal Expansion Valve Replacement Expansion Valve/Orifice Tube

Air Conditioning Evaporator Thermal Expansion Valve Replacement

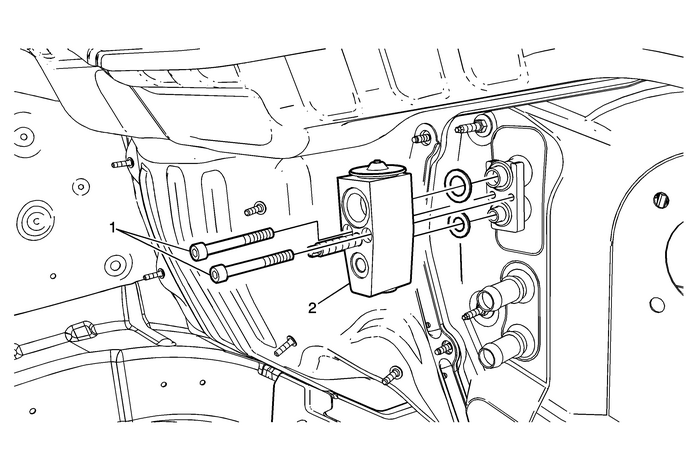

Callout

Component Name

Preliminary ProceduresRecover the refrigerant. Refer toRefrigerant Recovery and Recharging.Remove the air conditioning condenser and air conditioningevaporator tube from the expansion valve. Refer toAir Conditioning Condenser and Air Conditioning Evaporator Tube Replacement.

1

Thermal Expansion Valve Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

4.7-Y(41-lb-in)

2

Thermal Expansion Valve

Tip:Remove and discard the sealing washers. Refer toAir Conditioning System Seal Replacement.

Air Conditioning Evaporator Core Replacement Evaporator
Air Conditioning Evaporator Core ReplacementCalloutComponent NamePreliminary ProceduresRemove the thermal expansion valve. Refer toAir Conditioning Evaporator Thermal Expansion Valve Hose ReplacementR ...

Air Conditioning Refrigerant Pressure Sensor Valve Replacement (LEA)
Air Conditioning Refrigerant Pressure Sensor Valve ReplacementCalloutComponent NamePreliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Disconnect the electrica ...
