Air Conditioning Refrigerant Pressure Sensor Valve Replacement (LEA)

Air Conditioning Refrigerant Pressure Sensor Valve Replacement

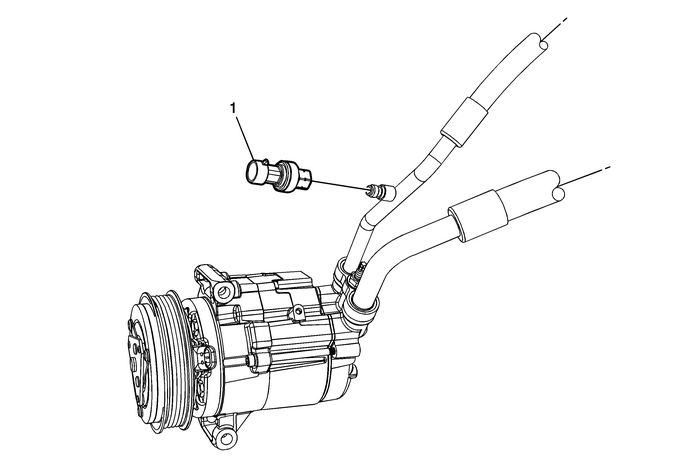

Callout

Component Name

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Disconnect the electrical connector from the refrigerantpressure sensor.

1

A/C Refrigerant Pressure Sensor

Caution:Refer toFastener Caution.

ProcedureRemove the refrigerant pressure sensor from the compressorhose.Hand start the refrigerant pressure sensor to the compressorhose, taking care not to pinch the O-ring and tighten.

Note:Lubricate the refrigerant pressure sensor O-ring with mineraloil. Refer toAir Conditioning O-Ring Seal Replacement.

Tighten

4-Y(35-lb-in)
