Removal Procedure

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

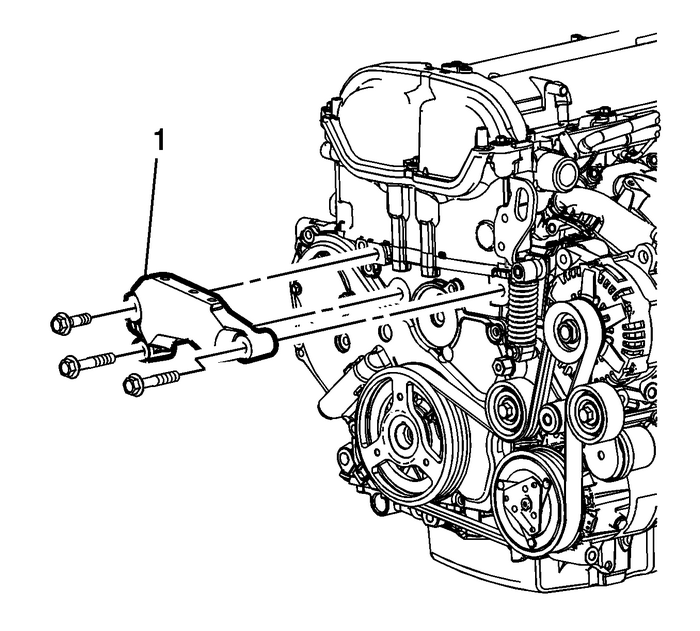

Remove the engine mount bracket-(1). Refer toEngine Mount Bracket Replacement.Remove the drive belt tensioner. Refer toDrive Belt Tensioner Replacement.Remove the crankshaft balancer. Refer toCrankshaft Balancer Replacement.Disconnect the oxygen sensor harness from the front cover andreposition.

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

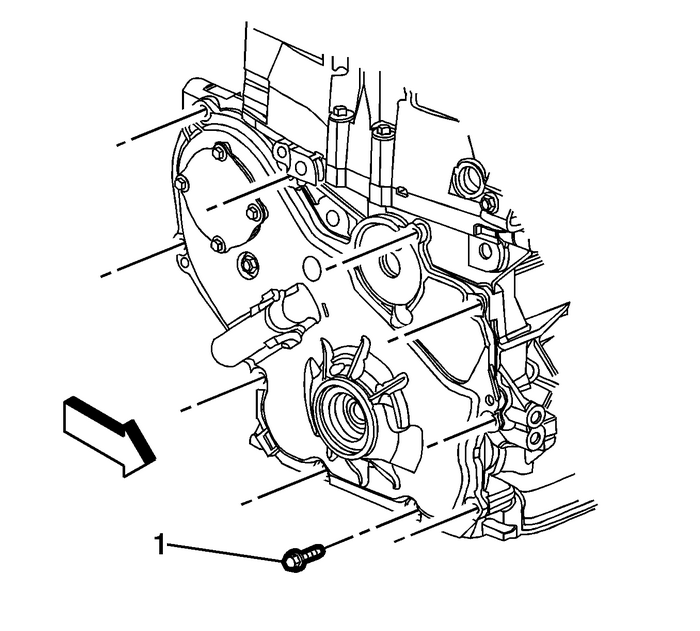

Remove the engine front cover to water pumpbolt-(1).

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

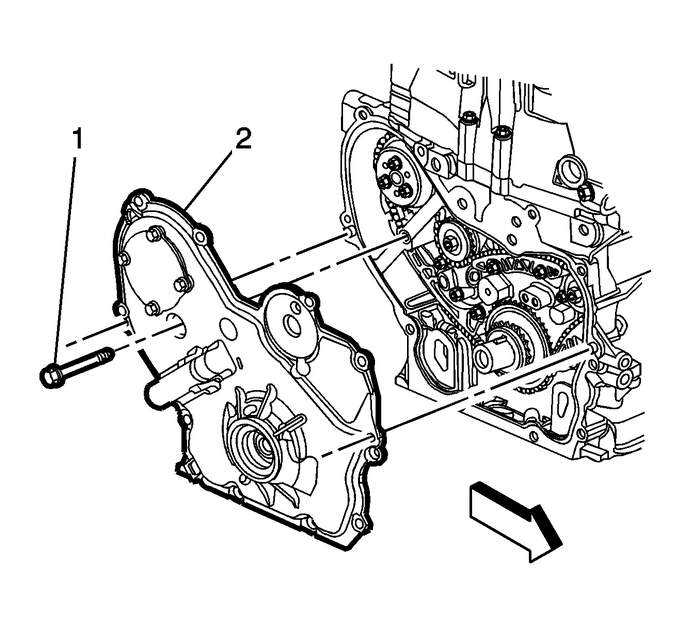

Raise and suitably support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the engine front cover bolts-(1).Remove the engine front cover.

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

Remove and discard the engine front covergasket-(1).Installation Procedure

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

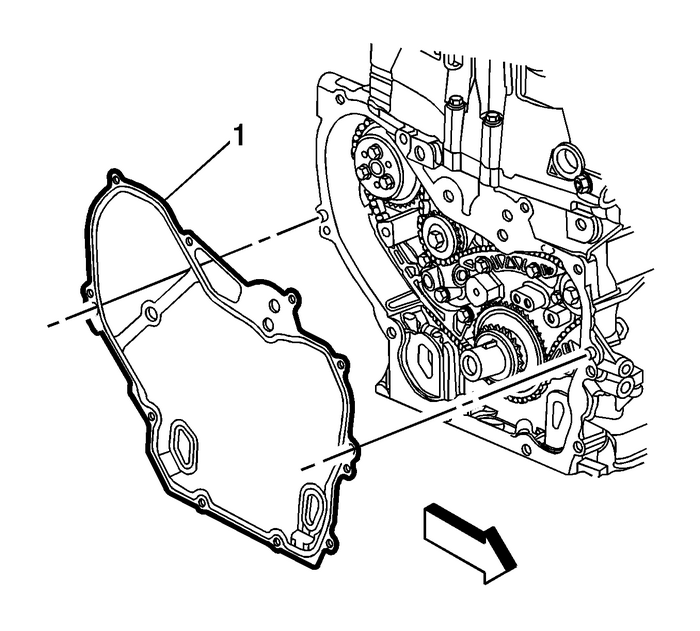

Install a NEW engine front cover gasket-(1) to thedowel pins.Install the engine front cover.

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

Caution:Refer toFastener Caution.

Install the engine front cover bolts-(1) andtighten to25-Y(18-lb-ft).Lower the vehicle.

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

Install the engine front cover to water pumpbolt-(1) and tighten to25-Y(18-lb-ft).

Engine Front Cover Replacement Engine Block Cylinder Block Cyl Block Front Cover

Reposition the oxygen sensor harness to the frontcover.Install the crankshaft balancer. Refer toCrankshaft Balancer Replacement.Install the drive belt tensioner. Refer toDrive Belt Tensioner Replacement.Install the engine mount bracket-(1). Refer toEngine Mount Bracket Replacement.
