Driver or Passenger Seat Removal and Installation Seats

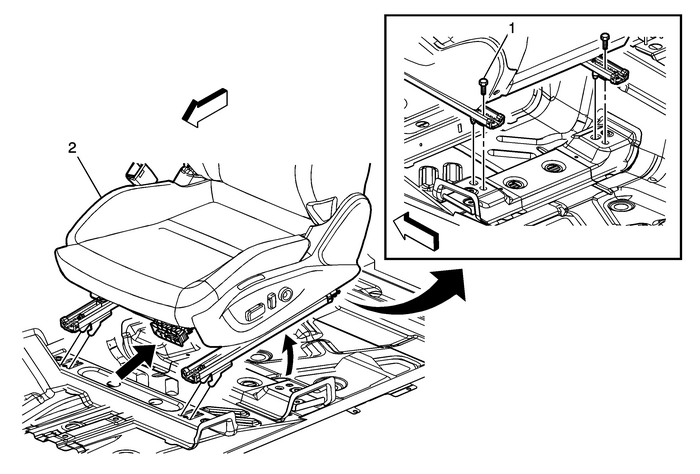

Driver or Passenger Seat Removal and Installation

Callout

Component Name

Warning:Refer toSIR Warning.

Warning:To avoid personal injury, perform a preload test on thepassenger presence system whenever you remove or replace the seatcushion trim. Failure to do so may cause the system tomalfunction.

Preliminary ProceduresDisable the SIR system. Refer toSIR Disabling and Enabling.Disconnect the front seat retractor anchor by removing thecap, bolt, and cover. Refer toDriver or Passenger Seat Retractor Side Belt Replacement.Whenever the inflatable restraint passenger presence systemor any component of the passenger presence system is removed. RefertoPassenger Presence System Programming and Setup

1

Front Seat Bolt (Qty:-2)

Caution:Refer toFastener Caution.

ProcedureAdjust the seat to the full forward position to gain accessto the rear bolts.Remove the rear track covers to gain access to the rearbolts, if equipped.Tighten

45-Y(33-lb-ft)

2

Front Seat Assembly

ProcedureDisconnect the front seat and pretensioner electricalconnector, and passenger presence system connector, ifequipped.With the aid of an assistant tilt the rear of the seatupward, and then lifting and pulling the seat rearwards todisengage the front hooks from the floor.
