Driver or Passenger Seat Recliner Actuator Replacement Seats

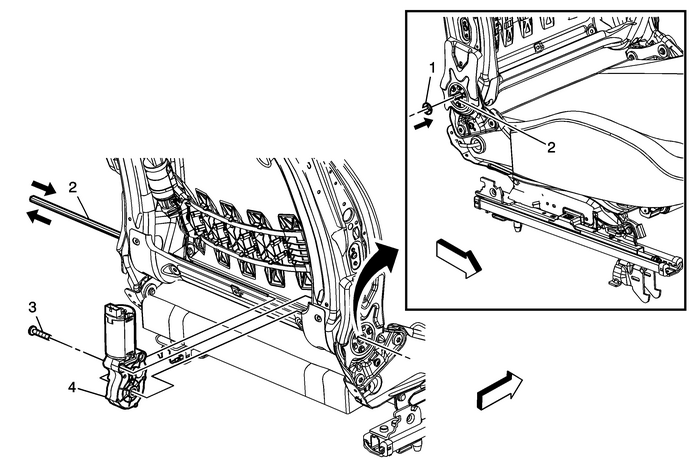

Driver or Passenger Seat Recliner Actuator Replacement

Callout

Component Name

Warning:Refer toSIR Warning.

Preliminary ProcedureRemove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation.Remove seat inner recliner finish cover. Refer toDriver or Passenger Seat Inner Recliner Finish Cover Replacement.Remove seat outer adjuster finish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.Remove seat back cushion finish panel. Refer toFront Seat Back Cushion Finish Panel Replacement.

1

Front Seat Recliner Rod Jam Nut

Tip:Replace with new rod jam nut.

2

Recliner Rod

Procedure

Gently tap the recliner rod outward until the rod is free ofthe recliner motor.

3

Front Seat Recliner Actuator Motor Fastener

Caution:Refer toFastener Caution.

Procedure

Disconnect the electric connector.

Tighten

6-Y-(53-lb-in)

4

Front Seat Recliner Actuator Motor
