Driver or Passenger Seat Outer Adjuster Finish Cover Replacement Seats

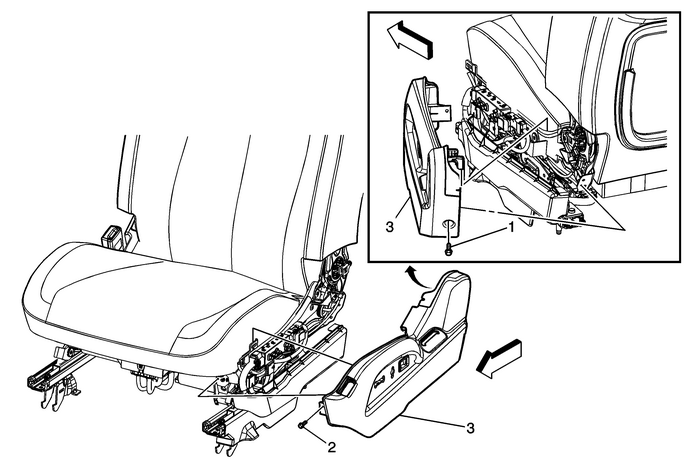

Driver or Passenger Seat Outer Adjuster Finish Cover Replacement

Callout

Component Name

Preliminary ProceduresRemove the driver or passenger seat recliner handle, ifequipped. Refer toFront Seat Back Recliner Handle Replacement.Remove the front seat belt tensioner cover. Refer toFront Seat Belt Anchor Plate Tensioner Cover Replacement.

1

Driver or Passenger Seat Outer Adjuster Finish Cover RearScrew

2

Driver or Passenger Seat Outer Adjuster Finish Cover FrontScrew

3

Driver or Passenger Seat Outer Adjuster Finish Cover

ProcedureDisconnect the electrical connectors.Remove the adjuster finish cover by pulling upward near theretainer clip locations.If replacing the cover, transfer components asnecessary.
