Driver or Passenger Seat Lumbar Support Actuator Replacement Seats

Driver or Passenger Seat Lumbar Support Actuator Replacement

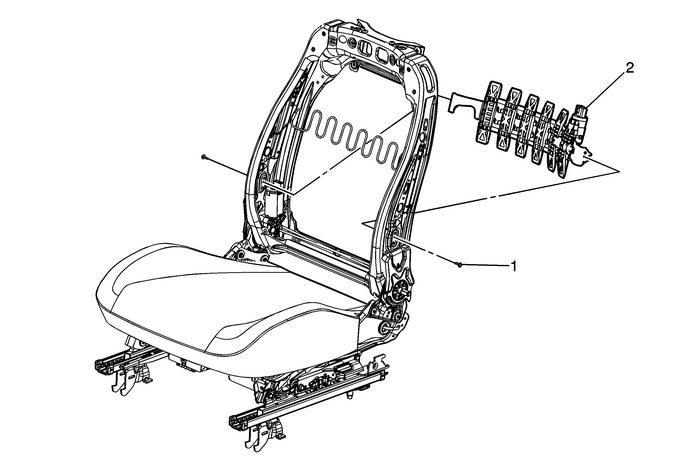

Callout

Component Name

Preliminary ProcedureDisable the SIR system. Refer toSIR Disabling and Enabling.Remove the driver or passenger seat back cushion cover andpad. Refer toDriver or Passenger Seat Back Cover and Pad Replacement.Remove the seat side inflatable restraint module. Refer toFront Seat Outboard Seat Back Airbag Replacement.

1

Front Seat Lumbar Support Actuator fastener(Qty:-2)

2

Front Seat Lumbar Support Actuator

ProcedureDisconnect the electrical connectors.Pull the lumbar support rearward and up until the lumbarsupport disengages from the seat back frame.
