Chevrolet Equinox Service Manual: Special Tools Engine Cooling

Chevrolet Equinox Service Manual / Powertrain / Engine / Special Tools Engine Cooling

Illustration

Tool Number / Description

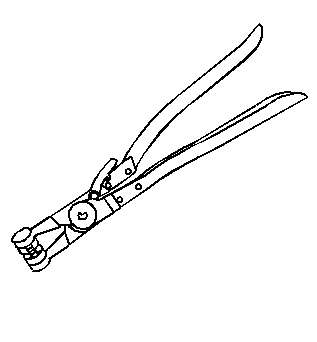

Special Tools Engine Cooling

BO-38185

J-38185

Hose Clamp Pliers

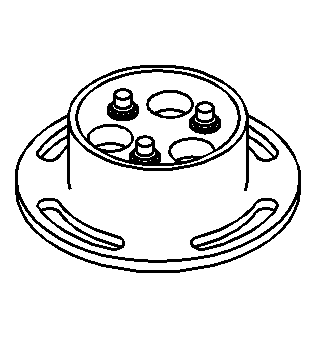

Special Tools Engine Cooling

EN-43651

J-43651

Waterpump Holding Tool

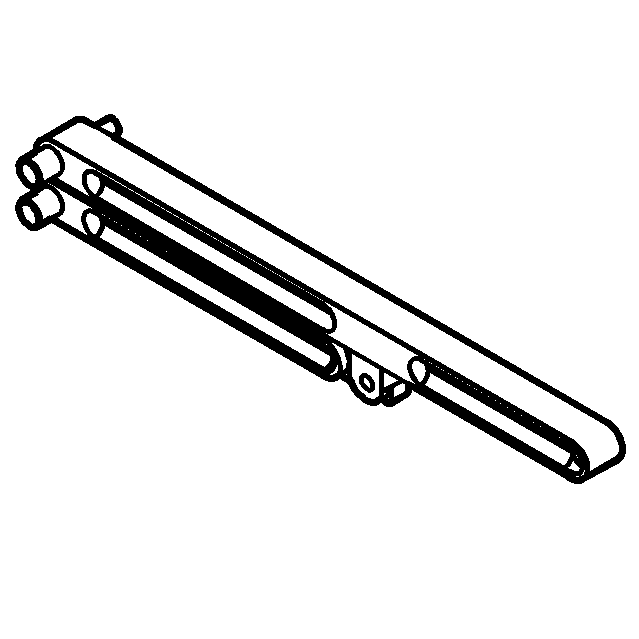

Special Tools Engine Cooling

EN-46104

Water Pump Pulley Holding Tool

Special Tools Engine Cooling

GE-25025–5

J-25025–5

Dial indicator Mounting PostM-X-1.00

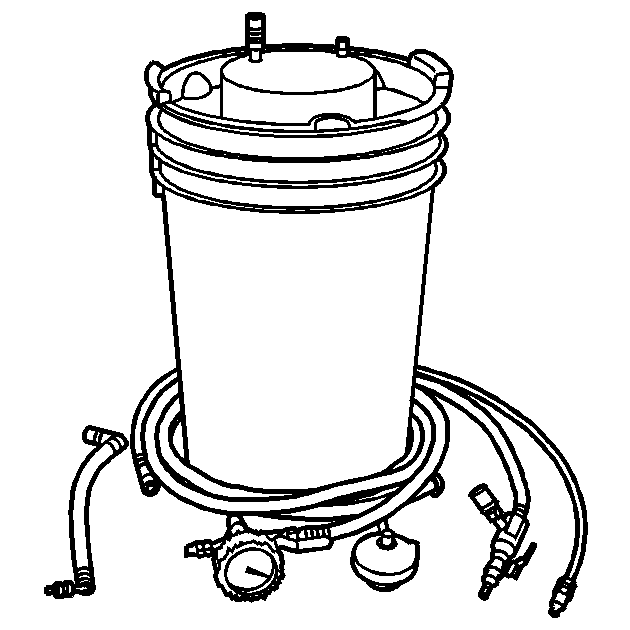

Special Tools Engine Cooling

GE-47716

Vac N Fill Coolant Refill Tool

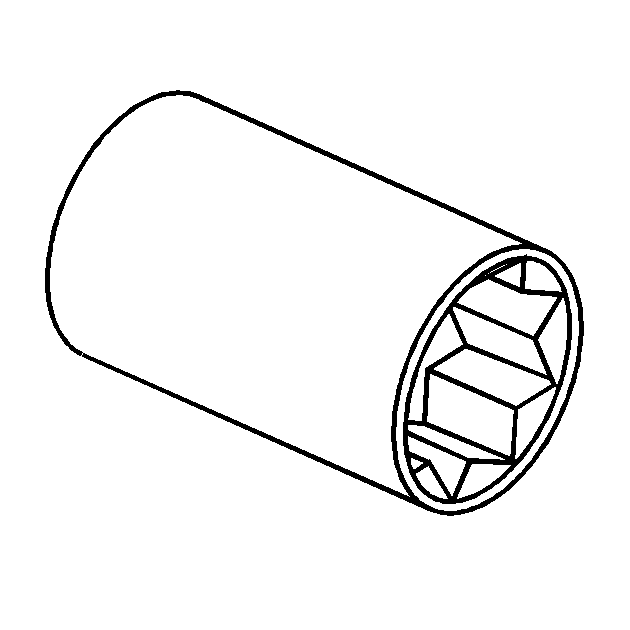

Special Tools Engine Cooling

GE-47827

Socket

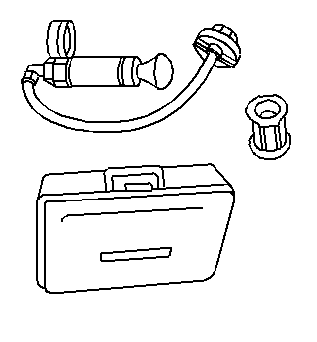

Special Tools Engine Cooling

EN-24460-A

J-24460-01

Cooling System Pressure Tester

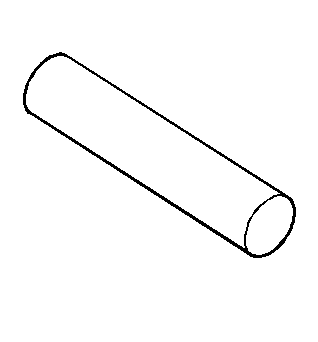

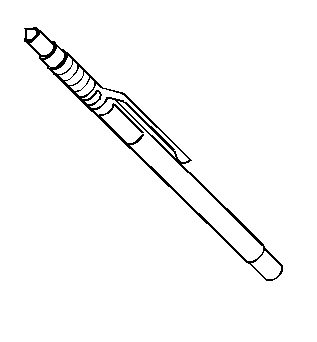

Special Tools Engine Cooling

GE-24731

J-24731

Tempil Stick

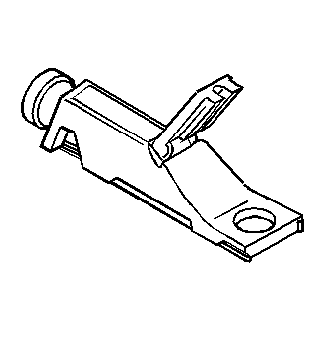

Special Tools Engine Cooling

GE-26568

J-26568

Coolant and Battery Fluid Tester

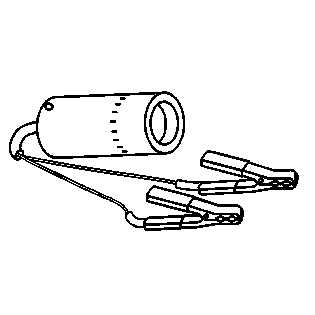

Special Tools Engine Cooling

GE-42220

J-42220

Universal 12V Leak Detection Lamp

Special Tools Engine Cooling

GE-42401-A

J-42401

Radiator Cap/Surge Tank Test Adapter

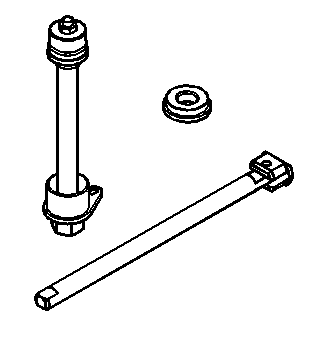

Special Tools Engine Cooling

EN-43650

J-43650

Waterpump Holding Tool
