Instrument Panel Compartment Door Replacement (Terrain) Consoles Center Console

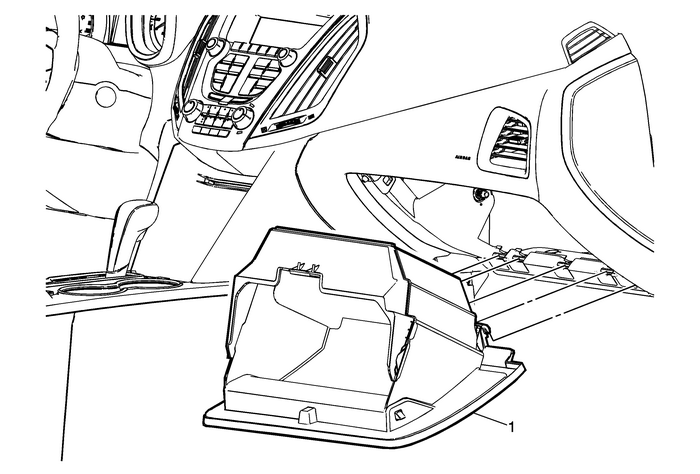

Instrument Panel Compartment Door Replacement

Callout

Component Name

1

Instrument Panel Compartment Door Assembly

Preliminary ProceduresOpen the instrument panel compartment door to its fullestopen position.Locate the instrument panel compartment door stop along theupper edge of the instrument panel compartment door.Push the instrument panel compartment door stop upwardallowing the instrument panel compartment door to open past thestopping point.Unsnap the instrument panel compartment door assembly fromthe instrument panel assembly.
Instrument Panel Compartment Door Latch Replacement Consoles Center Console
Instrument Panel Compartment Door Latch ReplacementCalloutComponent NamePreliminary ProcedureRemove the instrument panel center compartment. Refer toInstrument Panel Center Compartment Replacement.1In ...
