Driver or Passenger Seat Vertical Adjuster Actuator Replacement Seats

Driver or Passenger Seat Vertical Adjuster Actuator Replacement

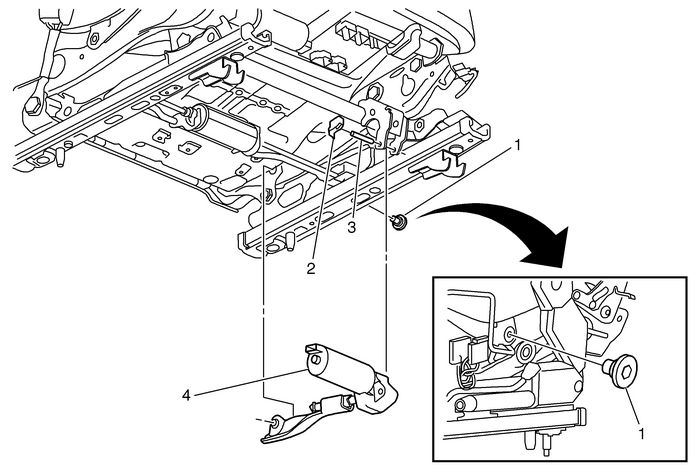

Callout

Component Name

Preliminary ProcedureRemove the driver or passenger seat. Refer toDriver or Passenger Seat Removal and Installation.Remove the driver or passenger seat inner adjuster frontfinish cover. Refer toDriver or Passenger Seat Outer Adjuster Finish Cover Replacement.Remove the driver or passenger seat belt tensioner cover.Refer toFront Seat Belt Anchor Plate Tensioner Cover Replacement.

1

Driver or Passenger Seat Adjuster Vertical ActuatorRetainer

Caution:Refer toFastener Caution.

Tighten

20-Y(15-lb-ft)

2

Driver or Passenger Seat Adjuster Vertical Actuator SecuringClip

Procedure

Remove the securing clip from the actuator and rollpin.

3

Driver or Passenger Seat Adjuster Vertical Actuator RollPin

Procedure

Use a hammer and small round tool to tap the roll pin outfrom the actuator.

4

Driver or Passenger Seat Adjuster Vertical Actuator

ProcedureDisconnect the electrical connector.Remove the adjuster vertical actuator by pulling downwardfrom the cushion frame.
