Chevrolet Equinox Service Manual: Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

Chevrolet Equinox Service Manual / Accessories / Security & Keyless Entry / Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

Special Tools

BO-51098 Flip Key Blade Fixture

For equivalent region tools, refer toSpecial Tools.

Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

Caution:Failure to properly support the Remote Keyless Entry (RKE) transmitter assembly whilereplacing the key blade may cause internal damage to the transmitter assembly.

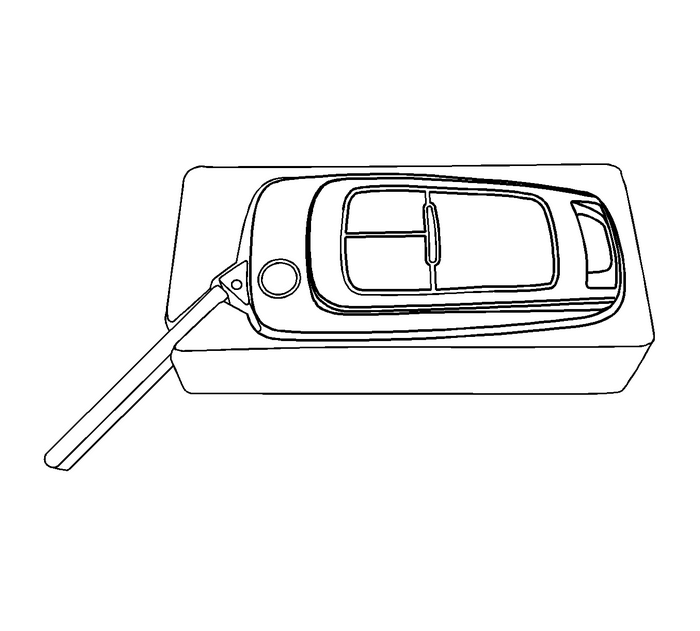

Insert the RKE transmitter in the fixture as shown.

Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

Note:It may be necessary to dress the pin drift on a grinder to maintain the diameter inorder to drive the pin through the housing.

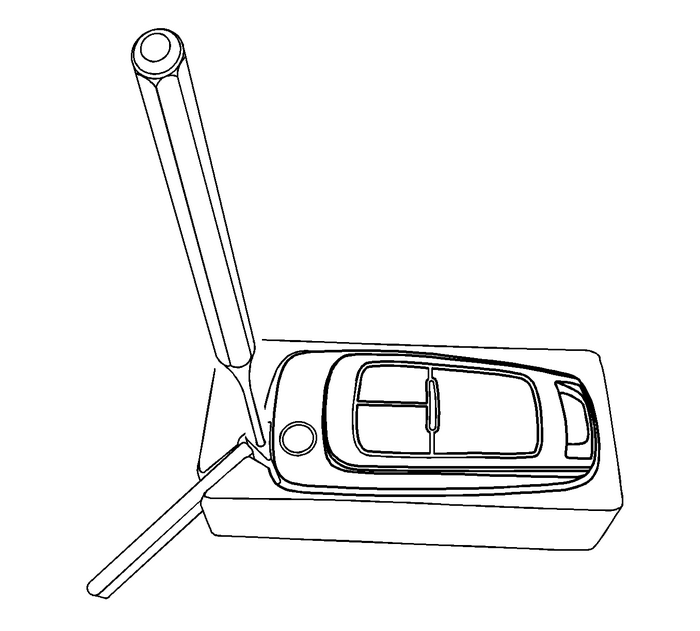

Using the BO-51098 fixture, drive the retention pin from the transmitter assembly as shown.

Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

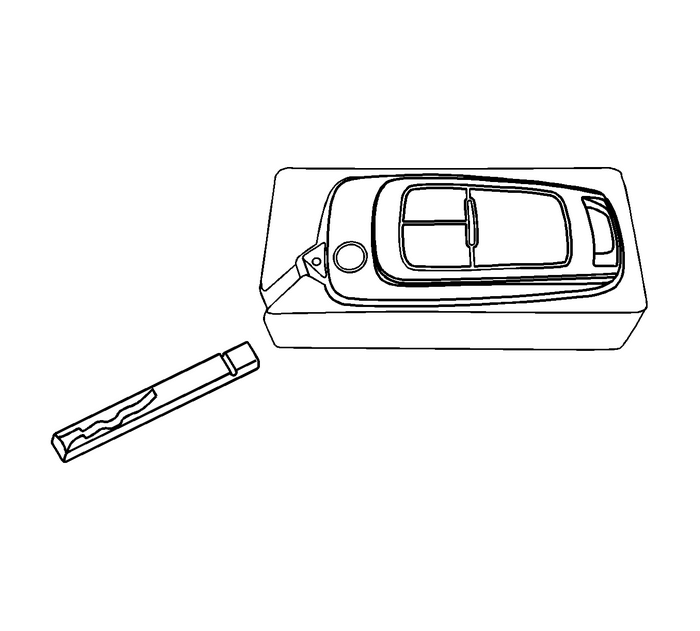

Remove the key blade from the transmitter assembly.Install the coded blank into the transmitter assembly, insure the indentation on thekey blade faces the retention pin.

Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

Note:Use caution not to damage the surface, chrome plating, in the following steps.

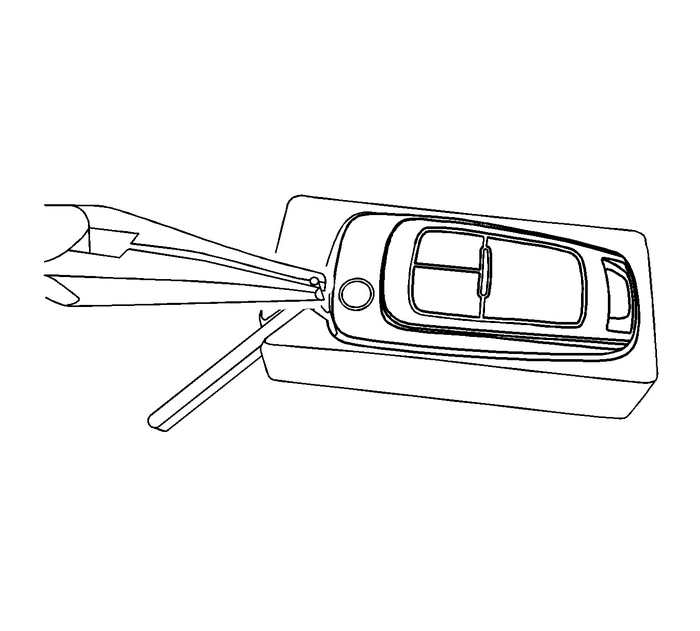

Using needle nose pliers, insert the pin half way into the transmitter assembly.

Door Lock and Ignition Lock Folding Key Blade Removal and Installation Locks

Using the BO-51098 fixture, drive the roll pin flush to the surface.

Key with Integrated Transmitter Programming Immobilizer
Keys can be programming in various ways using the procedures outlined below. Usingthe Replacing Keys procedures will first erase all the known keys from the vehicle.Any existing keys and any new keys ...

#09-00-89-029K: Key Cutting Procedure for Obtaining Replacement Key - (Jun 27, 2013) Keys and Keyless Entry
Subject:Key Cutting Procedure for Obtaining Replacement KeyModels: 2010-2014 Buick LaCrosse2011-2014 Buick Regal2012-2014 Buick Verano2010-2014 Cadillac SRX2013-2014 Cadillac ATS, XTS2010-2014 Chevro ...
