Subject:Key Cutting Procedure for Obtaining Replacement Key

#09-00-89-029K: Key Cutting Procedure for Obtaining Replacement Key - (Jun 27, 2013) Keys and Keyless Entry

Models: 2010-2014 Buick LaCrosse
2011-2014 Buick Regal
2012-2014 Buick Verano
2010-2014 Cadillac SRX
2013-2014 Cadillac ATS, XTS
2010-2014 Chevrolet Camaro, Equinox
2011-2013 Chevrolet Caprice PPV
2011-2014 Chevrolet Cruze, Volt
2012-2014 Chevrolet Orlando (Canada), Sonic
2013-2014 Chevrolet Malibu, Spark
2014 Chevrolet Impala Limited, Spark EV
2014 Chevrolet Silverado 1500
2010-2014 GMC Terrain
2014 GMC Sierra 1500
2008-2009 Pontiac G8
Attention: This bulletin applies to the United States and Canada only. Export dealers are tocontact their local Technical Assistance Center (TAC) for further information.

This bulletin has been revised to add the 2014 model year and to add the Impala, Spark,Spark EV, Silverado and Sierra. Please discard Corporate Bulletin Number 09-00-89-029J.

Due to the uniqueness of the ignition/door lock key, special equipment is requiredto cut a key. If you do not have the required equipment, you may order a cut/codedkey through GM CC&A.

To obtain a replacement key, the following procedure is suggested:

Obtain the vehicle key code.

U.S. Dealers: Access the “Key Code Look Up” application through GM GlobalConnect under the PartsWorkbench.

Canadian Dealers: Access the “KeyCode Look-Up” feature within the OEConnection D2DLink application.

For additional information on obtaining GM key codes:

– (U.S. dealers) - refer to the latest version of GM Corporate Bulletin Number 10-00-89-009.

– (Canada dealers) - refer to the latest version of GM Corporate Bulletin Number 10-00-89-010.

Submit a part order through the GM CC&A Parts System for a key blank. Be sure to includethe key code in the “note” field, and the keycode in the "comments" field of the order.The "Comments" field may ONLY contain the keycode, (NO extra words). Additional verbiagewill result in the order canceling.

Notice:In the GM CC&A parts system, the “comments” field may only contain the requestedkeycode. Additional characters in this field WILL CAUSE THE ORDER TO SELF CANCEL.

DO NOT ORDER AN UNCODED KEY AS YOU WILL RECEIVE A BLANK KEY THAT WILL REQUIRE CODINGON THE SPECIAL EQUIPMENT LISTED BELOW.

Note:The key code is five digits. Some vehicle records do not have the first digit displayed(i.e., vehicle records show the key code as "1234"). When ordering a cut/coded key,refer to the key code table.

Vehicle

Leading Digit

2010-2014 Buick LaCrosse

Z

2011-2014 Buick Regal

2012-2014 Buick Verano

2010-2014 Cadillac SRX

2013-2014 Cadillac ATS, XTS

2010-2014 Chevrolet Camaro

2011-2014 Chevrolet Cruze

2010-2014 Chevrolet Equinox

2012-2014 Chevrolet Orlando (Canada)

2012-2014 Chevrolet Sonic

2011-2014 Chevrolet Volt

2013-2014 Chevrolet Malibu

2014 Chevrolet Impala

2010-2014 GMC Terrain

2013-2014 Chevrolet Spark

M

2014 Chevrolet Spark EV

2014 Chevrolet Silverado 1500

V

2014 GMC Sierra 1500

2008-2009 Pontiac G8

6

2011-2013 Chevrolet Caprice PPV

Important:The order will be shipped the same day if received by 12:00 p.m. (noon) EST, or within24 hours, Monday through Friday via FedEx (Canadian dealers should place their ordersfor these parts using a CSO order type only. Do not order using the CSO3 order type).

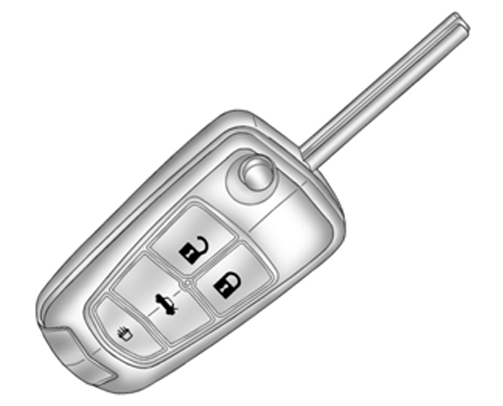

Important:If the key is integrated with the remote keyless entry (RKE) transmitter, the transmitterand the key shank are not serviced separately.

Tip:The new RKE transmitter and/or key will need to be programmed to the vehicle. Referto programming procedures in SI.

#09-00-89-029K: Key Cutting Procedure for Obtaining Replacement Key - (Jun 27, 2013) Keys and Keyless Entry

Parts Information

For part numbers and usage, refer to Key in Group 02.187 of the appropriate partscatalog.

Important:As an alternate to Step 2, the following equipment can be purchased through 1-800-GM-TOOLSor by visiting www.GMDEsolutions.com (U.S.) or www.des-canada.ca (Canada).

General Motors highly recommends the use of the following key machines. General Motorshas identified superior equipment through testing and evaluation. General Motors believesthese sources and their equipment to be reliable. There may be additional manufacturersof such equipment. General Motors does not endorse, indicate any preference for orassume any responsibility for the equipment from these firms or for any such itemswhich maybe available for other sources.

Equipment Information

Equipment

Description

Part Number

Computerized Duplicating and Code Cutting

Used to produce a key from a key code or duplicate

Barnes distribution BD Laser Code Cut & Duplicator GMDE Part # 425-9200000

Computerized Duplicating and Code Cutting

Used to produce a key from a key code or duplicate

Kaba Ilco Tricode HS Code Cut & Duplicator GMDE Part # 74-TRI-Code HS

Machine Duplication

Used to produce a duplicate key from an existing key

Kaba Ilco Matrix S Duplicator GMDE Part # 74-Matrix S

Warranty Information

For vehicles repaired under warranty, use:

Labor Operation

Description

Labor Time

S0011

Keys – Cut/Replace

Use Published Labor Operation Time

GM bulletins are intended for use by professional technicians,NOT a "do-it-yourselfer".  They are written to inform thesetechnicians of conditions that may occur on some vehicles, or toprovide information that could assist in the proper service of avehicle.  Properly trained technicians have the equipment,tools, safety instructions, and know-how to do a job properly andsafely.  If a condition is described, DO NOT assume that thebulletin applies to your vehicle, or that your vehicle will havethat condition.  See your GM dealer for information on whetheryour vehicle may benefit from the information.
