Control Valve Body Cover Installation Automatic Transmission Unit Control Valve Body

Control Valve Body Cover Installation

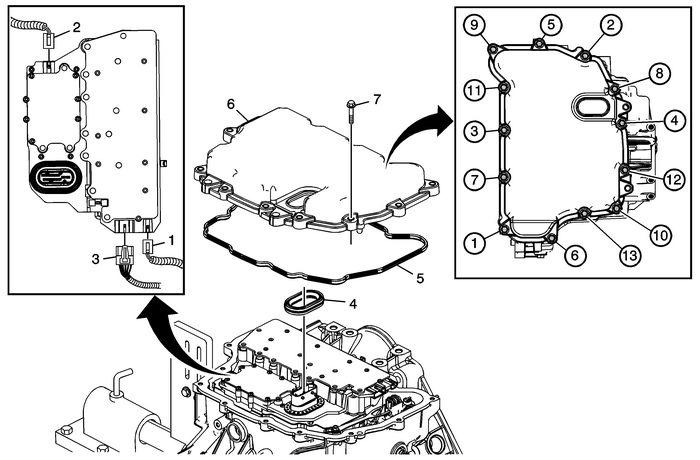

Callout

Component Name

1

Input Speed Sensor Connector

2

Output Speed Sensor Connector

3

Shift Position Switch Connector

4

Control Valve Body Cover Wiring Connector Hole Seal

Note:Do not re-use the valve body cover wiring connector hole seal.

5

Control Valve Body Cover Gasket

Note:Do not re-use the valve body cover gasket.

6

Control Valve Body Cover

7

Control Valve Body Cover Bolts-M6-x-30-(Qty:-13)

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in)
