Chevrolet Equinox Service Manual: Case Cover Assembly Disassemble Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Case Cover Assembly Disassemble Automatic Transmission Unit

Table 1: ISS Removal
Table 2: Low and Reverse Clutch Piston Removal
Table 3: 2–6 Clutch Piston Removal
Table 4: Clean and Inspect

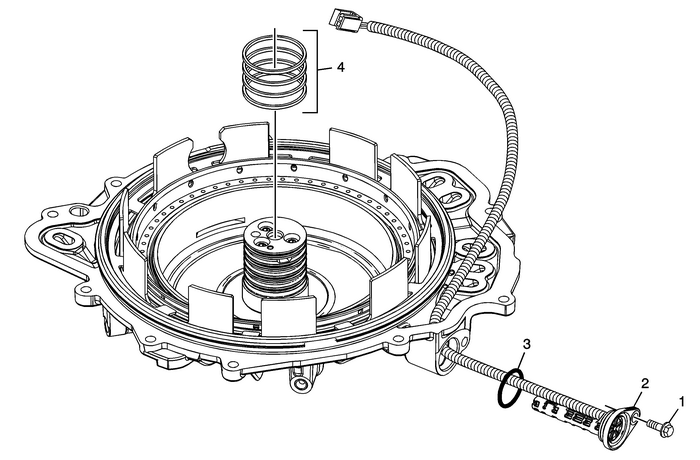

ISS Removal

Case Cover Assembly Disassemble Automatic Transmission Unit

ISS Removal

Callout

Component Name

1

A/Trans Input Speed Sensor Bolt-M6-x-25

2

A/Trans Input Speed Sensor

3

A/Trans Input Speed Sensor Seal

Note:Discard the seal.

4

3–5 Reverse and 4–5–6 Clutch Fluid Seal Ring

Note:Discard the seals.

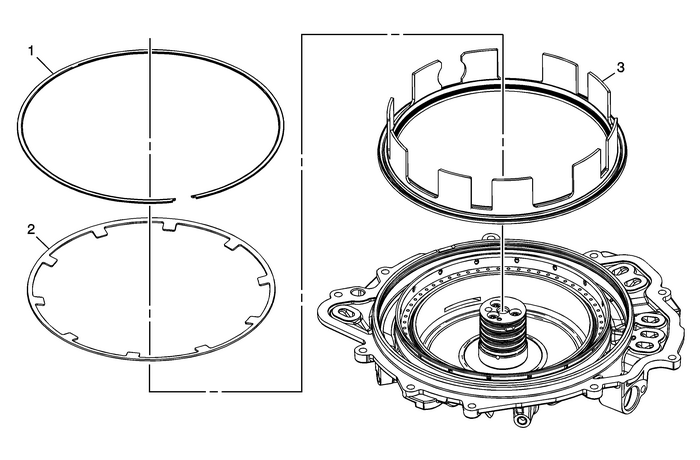

Low and Reverse Clutch Piston Removal

Case Cover Assembly Disassemble Automatic Transmission Unit

Low and Reverse Clutch Piston Removal

Callout

Component Name

1

Low and Reverse Clutch Spring Retaining Ring

2

Low and Reverse Clutch Spring

3

Low and Reverse Clutch Piston Assembly

Note:Inspect piston seals for damage and/or wear. Piston is reusable.

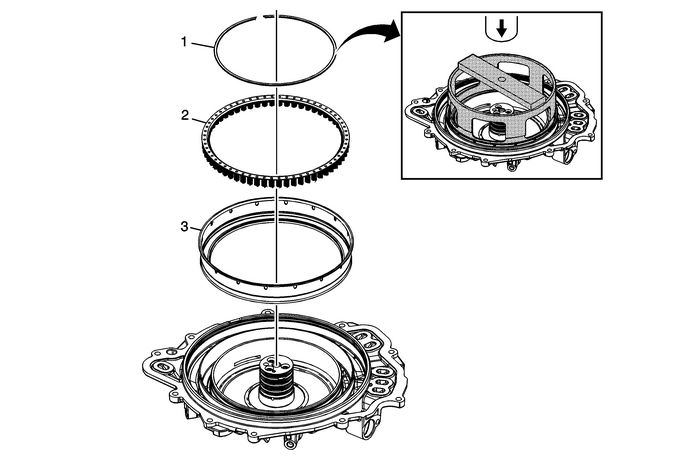

2–6 Clutch Piston Removal

Case Cover Assembly Disassemble Automatic Transmission Unit

2–6 Clutch Piston Removal

Callout

Component Name

1

2–6 Clutch Spring Retaining Ring

Special Tools

DT-46632 Spring Compressor

For equivalent regional tools, refer toSpecial Tools.

2

2–6 Clutch Spring Assembly

3

2–6 Clutch Piston

Note:Inspect piston seals for damage and/or wear. Piston is reusable.

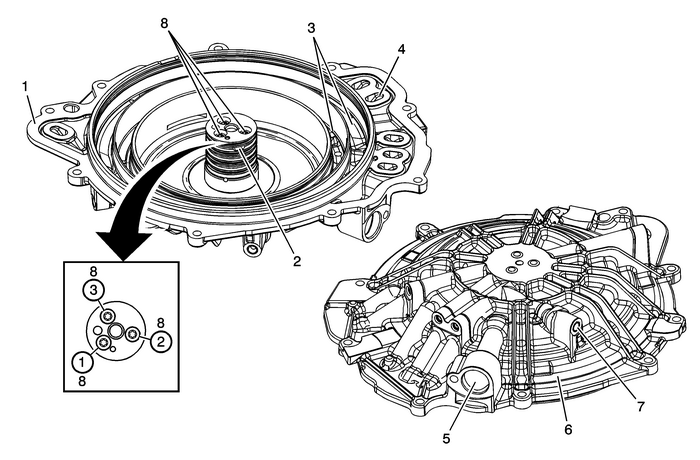

Clean and Inspect

Case Cover Assembly Disassemble Automatic Transmission Unit

.-..

Clean and Inspect

Callout

Component Name

Caution:After cleaning the transmission components, allow to air dry.Do not use cloth or paper towels in order to dry any transmissioncomponents. Lint from the towels can cause componentfailure.

Caution:Do not reuse cleaning solvents. Previously used solvents maydeposit sediment which may damage the component.

Preliminary ProceduresThoroughly clean the case cover assembly, including threads, with clean solvent.Clean gasket sealing surfaces. Remove all residual gasket material.Inspect all threaded holes. If necessary, repair any thread damage.

1

Gasket Sealing Surface

2

Fluid Passages

3

Piston Bores

4

Cover to Case Passages

5

A/Trans Input Speed Sensor Assembly Bore

6

Cover Casting

7

Passage Cup Plugs

8

Input Shaft Support Bolts

Caution:Refer toFastener Caution.

Procedure

Tightened bolts in sequence.

Tighten

12-Y (106-lb-in).
