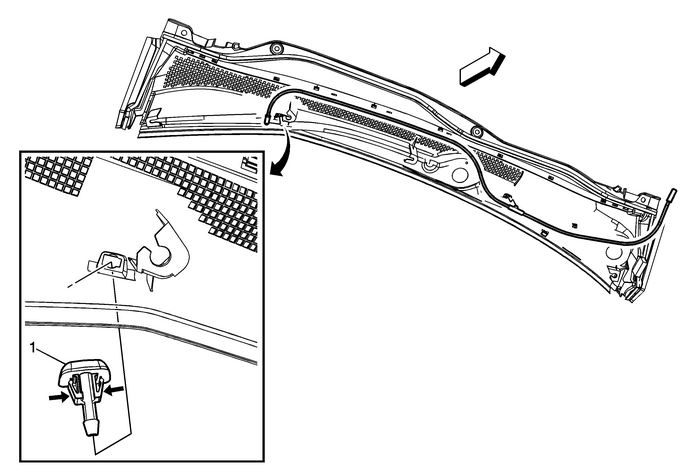

Windshield Washer Nozzle Replacement

Callout

Component Name

Preliminary Procedure

Remove the air inlet screen. Refer toAir Inlet Screen Replacement.

Windshield Washer Nozzle-Passenger Side

ProcedureDisengage the windshield washer nozzle hose connection at thepassenger or driver side windshield washer nozzle.Pinch the tabs on the underside of the washer nozzle and pushthe nozzle outward, away from the air inlet screen.

Windshield Washer Nozzle Replacement Washer Fluid System Washer Nozzles

Windshield Washer Nozzle ReplacementCalloutComponent NamePreliminary ProcedureRemove the air inlet screen. Refer toAir Inlet Screen Replacement.1Windshield Washer Nozzle-Driver SideProcedureDisengage ...

Windshield Washer Pump Hose Replacement Washer Fluid System Washer Pump

Windshield Washer Pump Hose ReplacementCalloutComponent NamePreliminary ProceduresOpen and support the hood.Remove the left side front bumper fascia opening cover. RefertoFront Bumper Fascia Opening C ...
