Windshield Wiper Blade Replacement (Terrain Passenger Side) Wipers Wiper Blade

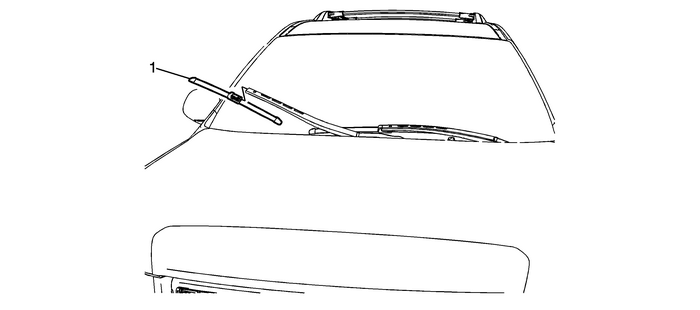

Windshield Wiper Blade Replacement

Callout

Component Name

1

Windshield Wiper Blade Assembly Passenger Side

ProcedureLift the wiper arm off the windshield to the service up position.Depress the wiper arm tab at the small square hole in the wiper arm.Rotate the wiper blade slightly downward and slide the wiper blade assembly from thewindshield wiper arm.Gently return the wiper arm to the windshield.Install a new windshield wiper blade.
