Windshield Wiper Blade Replacement (Terrain Driver Side) Wipers Wiper Blade

Windshield Wiper Blade Replacement

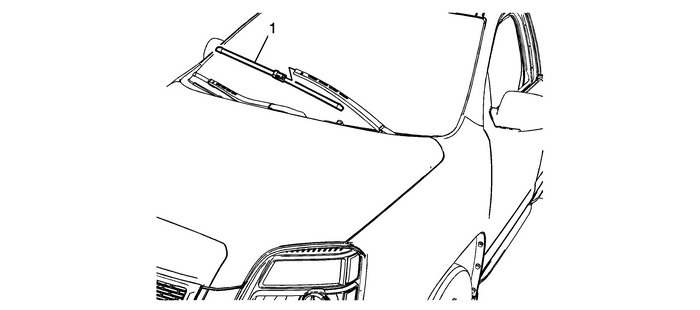

Callout

Component Name

1

Windshield Wiper Blade Assembly-Driver Side

ProcedureLift the wiper arm off the windshield to the service upposition.Depress the wiper arm tab at the small square hole in thewiper arm.Rotate the wiper blade slightly downward and slide the wiperblade assembly from the windshield wiper arm.Gently return the wiper arm to the windshield.Install a new windshield wiper blade.
