Windshield Wiper Blade Replacement (Equinox Passenger Side) Wipers Wiper Blade

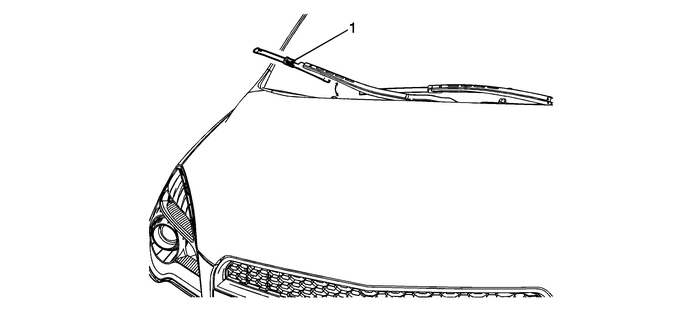

Windshield Wiper Blade Replacement

Callout

Component Name

Preliminary ProceduresLift the wiper arm off the windshield to the service upposition.Depress the wiper arm tab at the small square hole in thewiper arm.Rotate the wiper blade slightly downward and slide the wiperblade assembly from the windshield wiper arm.Gently return the wiper arm to the windshield.Install a new windshield wiper blade.

1

Windshield Wiper Blade Assembly-PassengerSide
