Windshield Wiper Motor Replacement (Equinox Terrain) Wipers Wiper Motor

Windshield Wiper Motor Replacement

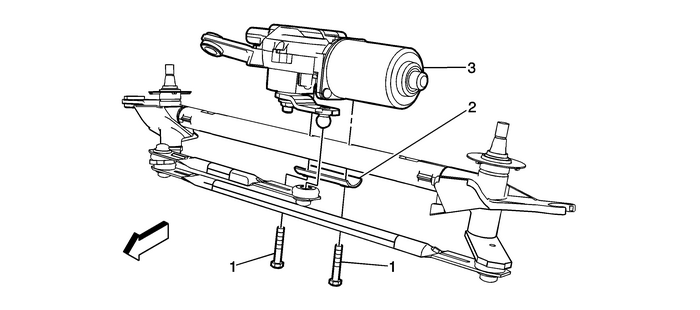

Callout

Component Name

Preliminary Procedure

Remove the windshield wiper transmission. Refer toWindshield Wiper Transmission Replacement.

1

Windshield Wiper Motor Bolt (Qty:-2)

Caution:Refer toFastener Caution.

Tighten

6-Y(53-lb-in)

2

Windshield Wiper Motor Plate

3

Windshield Wiper Motor

ProcedureUsing theJ-39232separatorremove the wiper motor crank arm from the transmissionlink.Remove the windshield wiper motor from the wipertransmission.Position the new windshield wiper motor to thetransmission.Align the transmission links to the wiper motor crankarm.Using theJ-39529installersecure the wiper motor crank arm ball to the transmissionlink ball socket.Install the windshield wiper transmission. Refer toWindshield Wiper Transmission Replacement.Tools RequiredJ-39232Wiper Linkage SeparatorJ-39529Wiper Linkage Installer

For equivalent regional tools, refer toFastener Tightening Specifications.
