Oil Pump Assemble Engine Lubrication Oil Pump

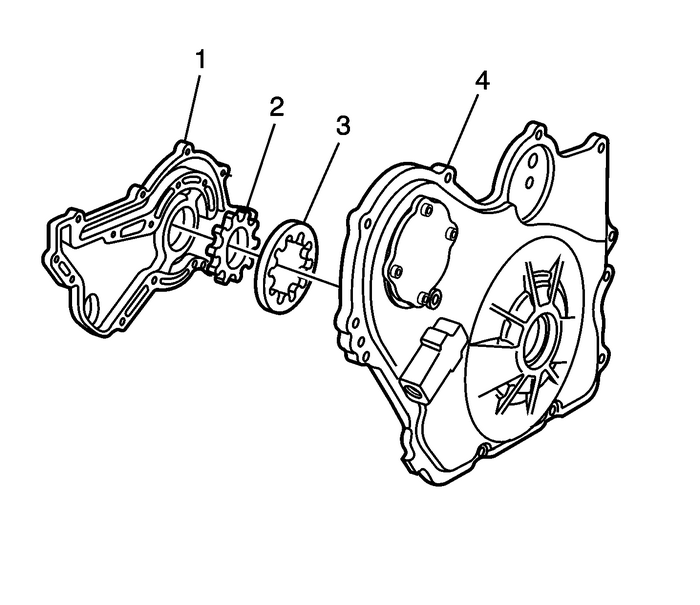

Lubricate all oil pump parts with engine oil.Install the inner gear-(2) into the outergear-(3).

Note:If gears are improperly installed in the front cover, thegerotor cover will not bolt on.

Install the gears together into the frontcover-(4) with the hub of the center gear facing thefront cover.

Caution:Refer toFastener Caution.

Install the oil pump gerotor cover-(1) and boltsand tighten to6-Y(53-lb-in).

Oil Pump Assemble Engine Lubrication Oil Pump

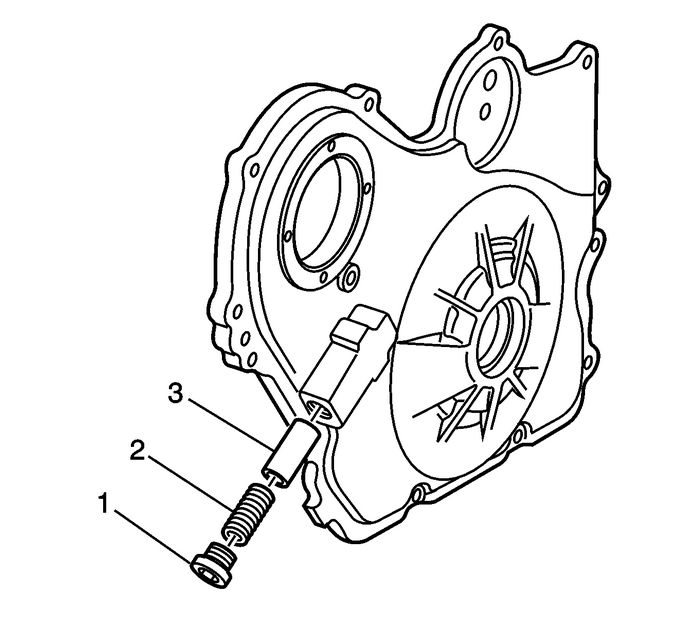

Install the pressure relief valveplunger-(3).Install the pressure relief valvespring-(2).Install and tighten the pressure relief valveplug-(1) to40-Y(30-lb-ft).
