Chevrolet Equinox Service Manual: Camshaft Cover Disassemble Valvetrain Camshaft

Chevrolet Equinox Service Manual / Powertrain / Engine / Camshaft Cover Disassemble Valvetrain Camshaft

Left Camshaft Cover

Camshaft Cover Disassemble Valvetrain Camshaft

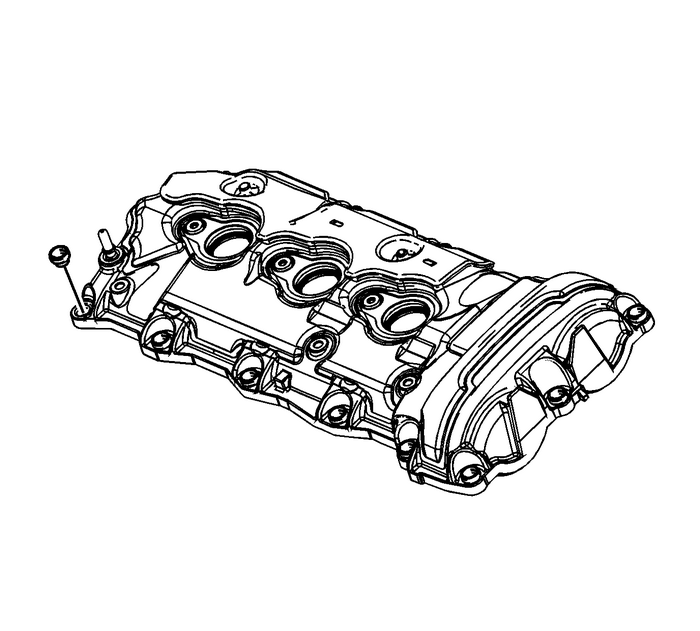

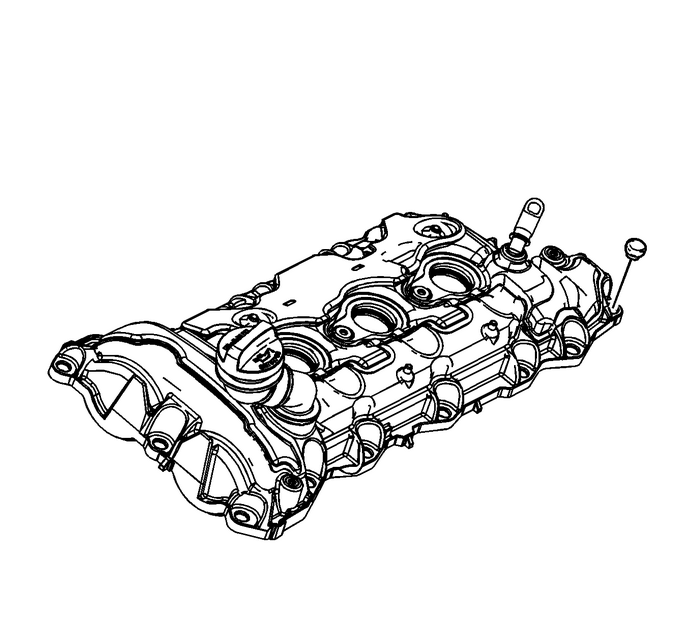

Remove and discard the left camshaft cover boltgrommets.

Camshaft Cover Disassemble Valvetrain Camshaft

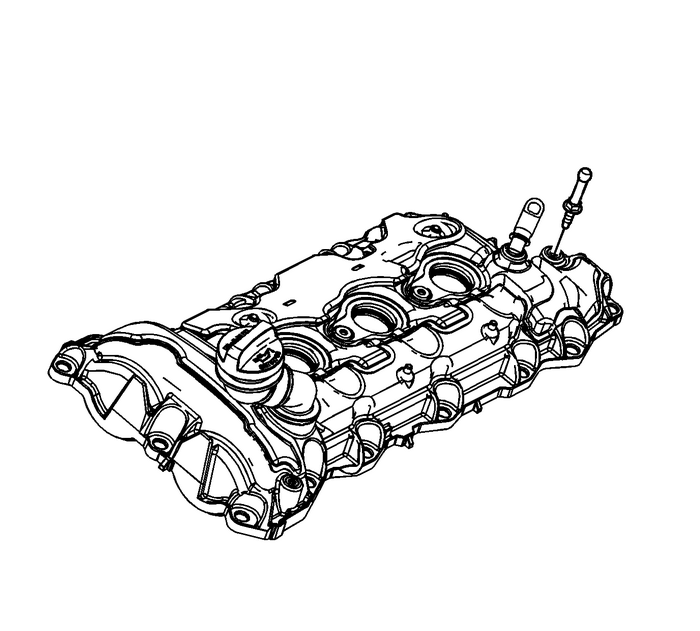

Remove the fuel injector sight shield ballstud.

Camshaft Cover Disassemble Valvetrain Camshaft

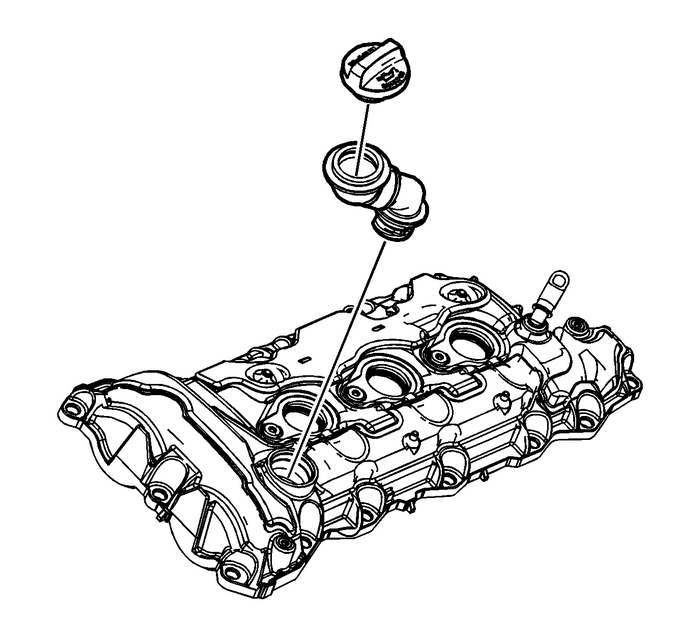

Remove the oil fill cap.

Camshaft Cover Disassemble Valvetrain Camshaft

Note:Do not reuse the camshaft cover gasket and spark plug shieldtube seals.

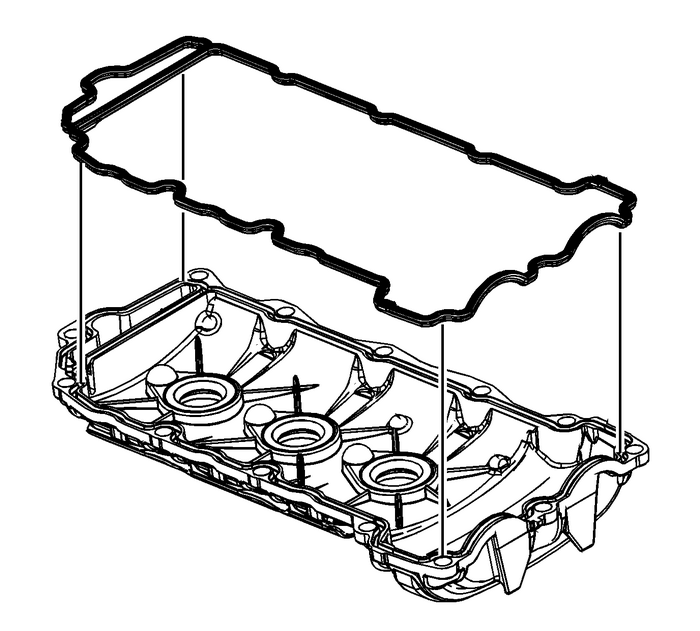

Remove and discard the left camshaft cover gasket.

Camshaft Cover Disassemble Valvetrain Camshaft

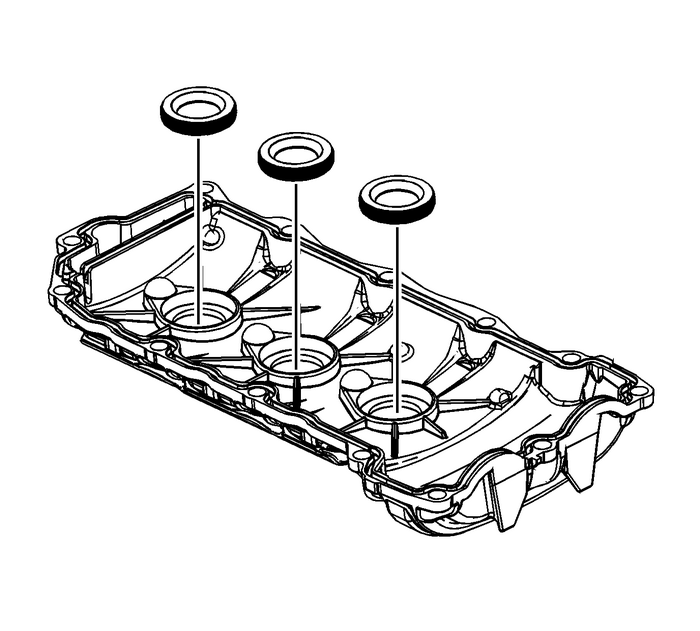

Remove and discard the left spark plug shield tubeseals.Right Camshaft Cover

Camshaft Cover Disassemble Valvetrain Camshaft

Remove and discard the right camshaft cover boltgrommets.

Camshaft Cover Disassemble Valvetrain Camshaft

Note:Do not reuse the camshaft cover gasket and spark plug shieldtube seals.

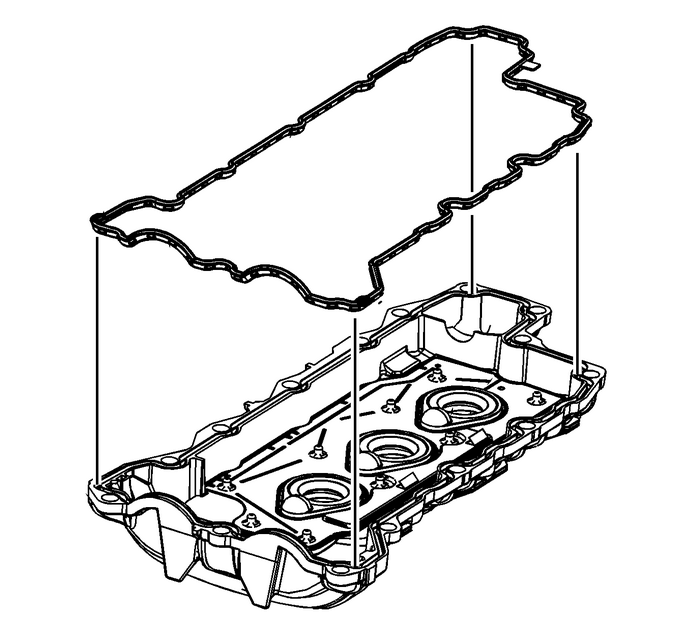

Remove and discard the right camshaft cover gasket.

Camshaft Cover Disassemble Valvetrain Camshaft

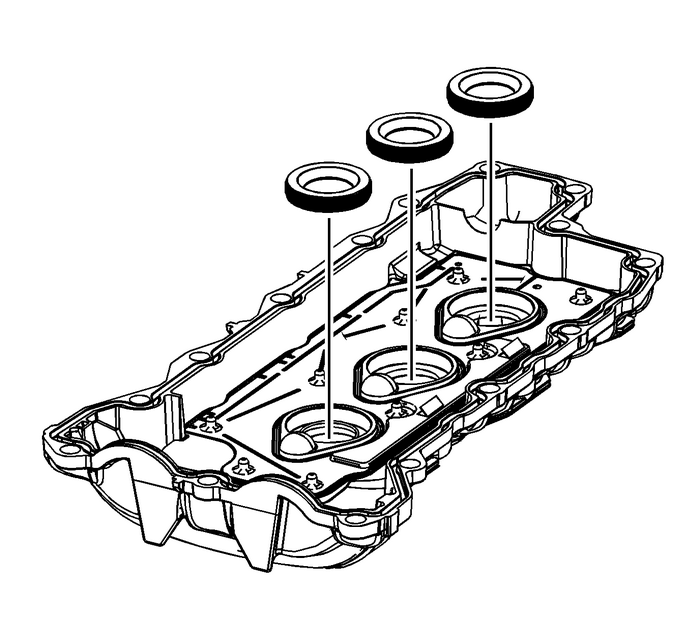

Remove and discard the right spark plug shield tubeseals.
