Chevrolet Equinox Service Manual: Oil Level Indicator and Tube Installation (LAF, LEA, or LUK) Engine Lubrication Oil Level Indicator Tube

Chevrolet Equinox Service Manual / Powertrain / Engine / Oil Level Indicator and Tube Installation (LAF, LEA, or LUK) Engine Lubrication Oil Level Indicator Tube

Oil Level Indicator and Tube Installation (LAF, LEA, or LUK) Engine Lubrication Oil Level Indicator Tube

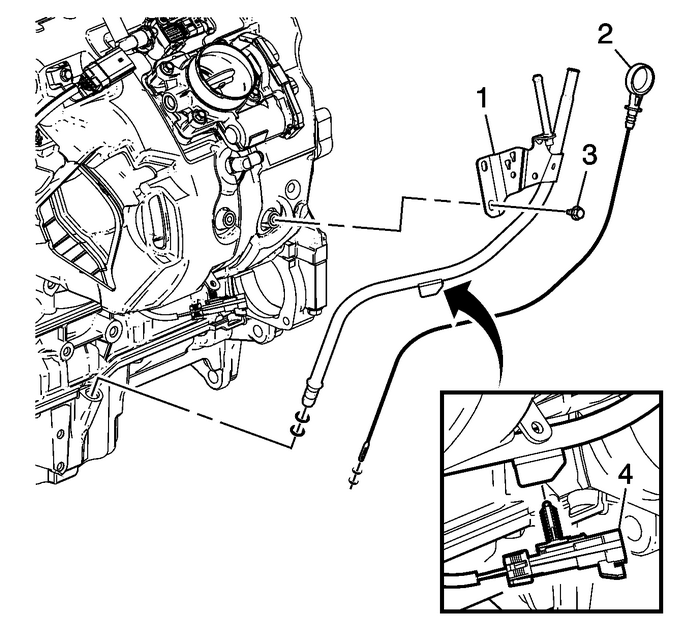

Lubricate the oil level indicator tube O-ring.Refer toAdhesives, Fluids, Lubricants, and Sealers.Install the oil level indicator-(2) and the oillevel indicator tube-(1) into the oil pan.

Caution:Refer toFastener Caution.

Install the oil level indicator tube bracketbolt-(3) to the intake manifold and tighten to10-Y-(89-lb-in).Install the electrical wiring harness to the oil levelindicator tube.Install the knock sensor wiring clip-(4) into theoil level indicator tube.
Oil Pump Assemble Engine Lubrication Oil Pump
Lubricate all oil pump parts with engine oil.Install the inner gear-(2) into the outergear-(3).Note:If gears are improperly installed in the front cover, thegerotor cover will not bolt on.Install the ...

Engine Mount Inspection Engine Block Engine Mounts
Note:Before replacing any engine mount due to suspected fluidloss, verify that the source of the fluid is the engine mount, notthe engine or accessories.Install the engine support fixture. Refer toEng ...

Other materials:

Water Pump and Balance Shaft Chain and Tensioner Installation Engine Block Cylinder Block Balance Shaft
Caution:Refer toFastener Caution.Note:If the balance shafts are not properly timed to the engine,the engine may vibrate and make noise.Install the upper balance shaft chain guide-(1)and bolts and tighten to12-Y-(106-lb-in).Install the small balance shaft chainguide-(1).Install the balance shaft chai ...
