Windshield Washer Pump Hose Replacement Washer Fluid System Washer Pump

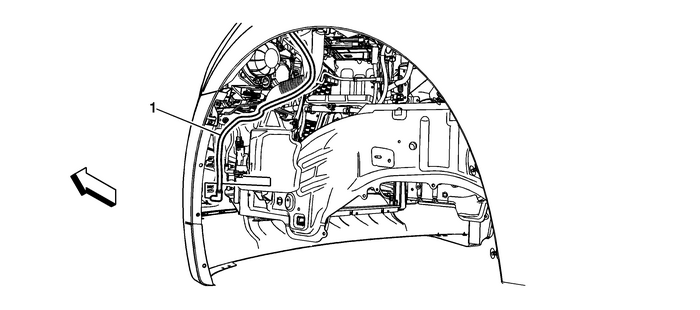

Windshield Washer Pump Hose Replacement

Callout

Component Name

Preliminary ProceduresOpen and support the hood.Remove the left side front bumper fascia opening cover. RefertoFront Bumper Fascia Opening Cover Replacement.Disconnect the windshield washer pump hose from thewindshield washer nozzle hose at the left side fenderflange.Remove the driver side wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.Place a clean suitable container under the windshield washercontainer.Disconnect the windshield washer pump hose from thewindshield washer pump spout.

1

Windshield Washer Pump Hose

Procedure

Route the new hose through the windshield washer solventcontainer tabs as removed and re-connect the hose ends.
