Windshield Washer Pump Replacement Washer Fluid System Washer Pump

Windshield Washer Pump Replacement

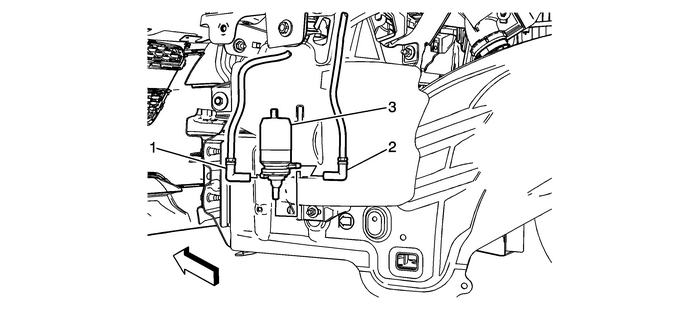

Callout

Component Name

Preliminary ProceduresRemove the driver side wheelhouse liner. Refer toFront Wheelhouse Liner Replacement.Place a clean suitable drain pan under the windshield washersolvent container.Disconnect the windshield washer pump electricalconnector.Disconnect the windshield washer pump front hose.Disconnect the rear washer system pump hose.Disengage the washer pump from the washer container.Using two flat-bladed tools under the washer pump, pry upwardin order to remove the pump from the washer containergrommet.

1

Rear Window Washer Pump Hose

2

Windshield Washer Pump Hose

3

Windshield Washer Pump Assembly

Tip:Install a new grommet prior to installing a new windshieldwasher pump.

Windshield Washer Pump Hose Replacement Washer Fluid System Washer Pump
Windshield Washer Pump Hose ReplacementCalloutComponent NamePreliminary ProceduresOpen and support the hood.Remove the left side front bumper fascia opening cover. RefertoFront Bumper Fascia Opening C ...

Windshield Washer Solvent Container Replacement Washer Fluid System
Windshield Washer Solvent Container ReplacementCalloutComponent NamePreliminary ProceduresOpen and support the hood.Remove the front bumper fascia opening cover. Refer toFront Bumper Fascia Opening Co ...
