Chevrolet Equinox Service Manual: Low and Reverse and 1-2-3-4 Clutch Housing Disassemble Automatic Transmission Unit Automatic Clutches

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Low and Reverse and 1-2-3-4 Clutch Housing Disassemble Automatic Transmission Unit Automatic Clutches

Table 1: Low and Reverse Clutch Piston Removal
Table 2: 1–2–3–4 Clutch PistonRemoval
Low and Reverse Clutch Piston Removal

Low and Reverse and 1-2-3-4 Clutch Housing Disassemble Automatic Transmission Unit Automatic Clutches

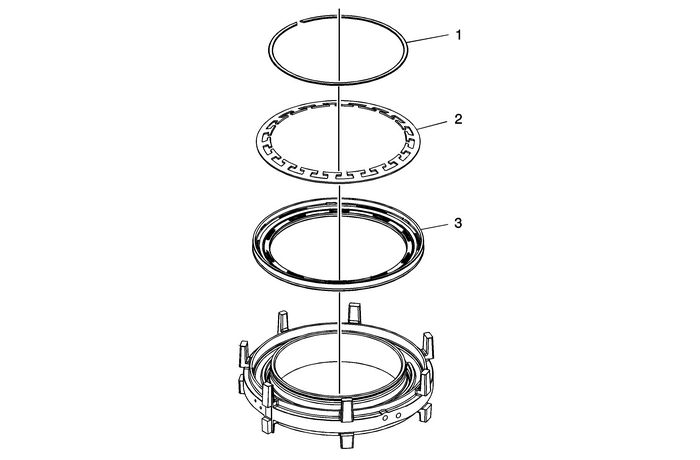

Low and Reverse Clutch Piston Removal

Callout

Component Name

1

Low and Reverse Clutch Spring Retainer

Special Tool

GE-8059Snap RingPliers-–-Parallel Jaw

For equivalent regional tools, refer toSpecial Tools.

2

Low and Reverse Clutch Spring

3

Low and Reverse Clutch Piston

1–2–3–4 Clutch PistonRemoval

Low and Reverse and 1-2-3-4 Clutch Housing Disassemble Automatic Transmission Unit Automatic Clutches

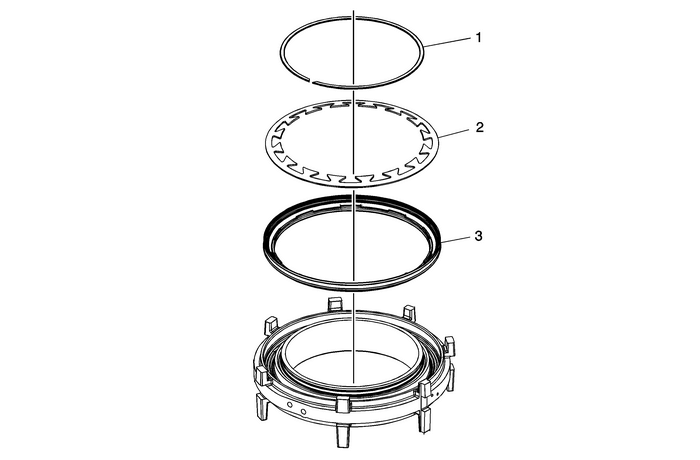

1–2–3–4 Clutch PistonRemoval

Callout

Component Name

1

1–2–3–4 Clutch SpringRetainer

Special Tool

GE-8059Snap RingPliers-–-Parallel Jaw

For equivalent regional tools, refer toSpecial Tools.

2

1–2–3–4 Clutch Spring

3

1–2–3–4 Clutch Piston
