Chevrolet Equinox Service Manual: Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Chevrolet Equinox Service Manual / Chassis / Brake Control and Vehicle Dynamics / Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Removal ProcedurePlace the ignition switch in the OFF position.Remove the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement.

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

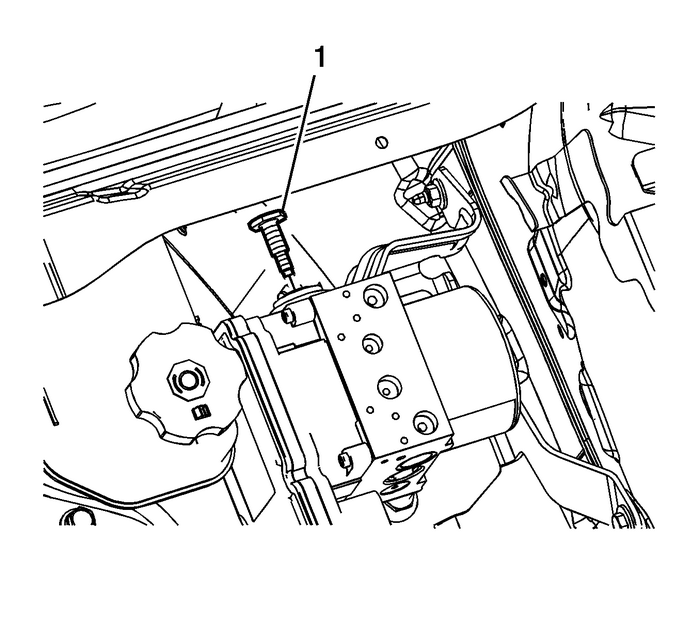

Remove the brake pressure modulator valve (BPMV)bolt-(1).

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Note:Do not pry on the accumulator caps on the underside of theBPMV.

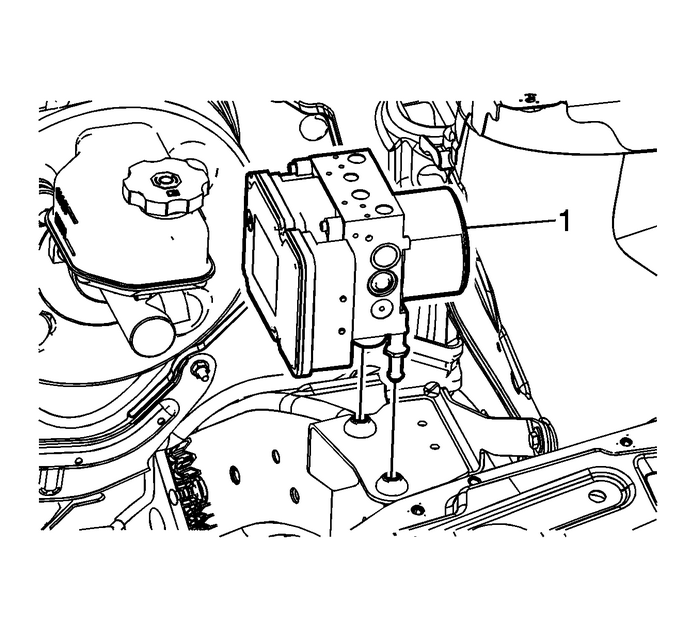

Without disconnecting the brake pipe fittings, carefully liftthe BPMV assembly-(1)-upward to release themounting pins from the BPMV bracket insulators.Position the BPMV assembly aside and secure with heavymechanics wire or equivalent.

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

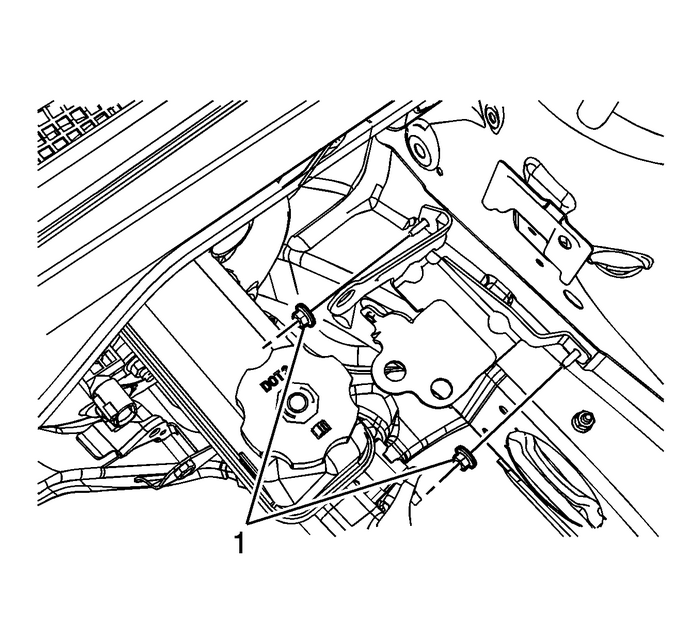

Remove the-2-BPMV bracketnuts-(1).

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

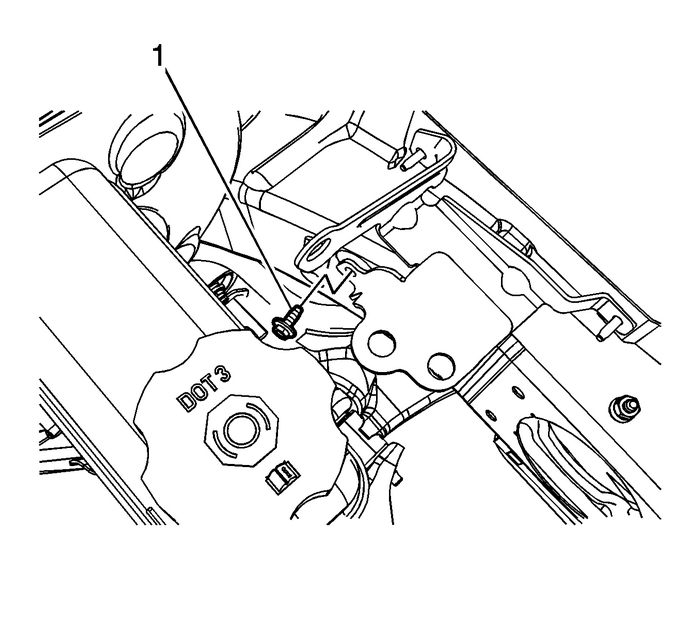

Remove the BPMV bracket bolt-(1).

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

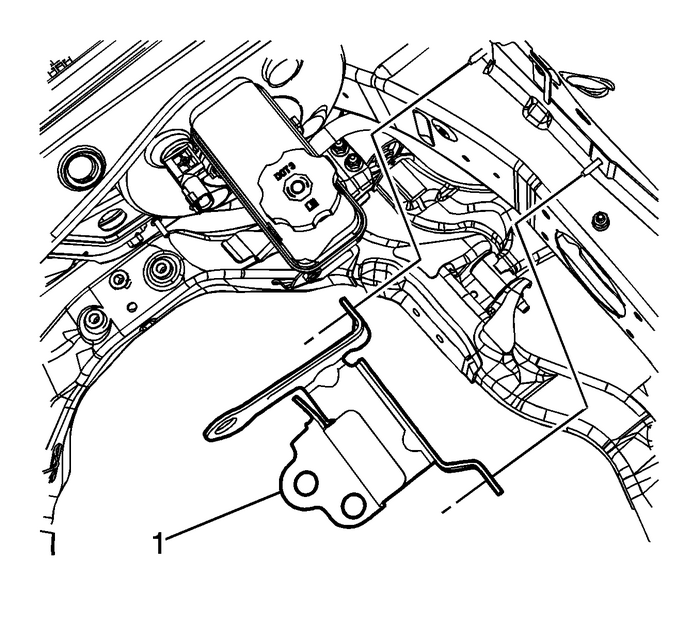

Remove the BPMV bracket-(1).Inspect the insulators for damage and replace, ifnecessary.Installation Procedure

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Install the BPMV bracket-(1).

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Caution:Refer toFastener Caution.

Install the BPMV bracket bolt-(1)-andtighten to-10-Y(89-lb-in).

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Install the BPMV bracket nuts-(1)-andtighten to-10-Y(89-lb-in).

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Carefully position the BPMVassembly-(1)-to the BPMV bracketinsulators.

Brake Pressure Modulator Valve Bracket Replacement Dynamics Control ABS Control

Install the BPMV bolt-(1) and tightento-10-Y(89-lb-in).Install the accessory wiring junction block. Refer toAccessory Wiring Junction Block Replacement.
