Rear Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

Rear Wheel Speed Sensor Replacement

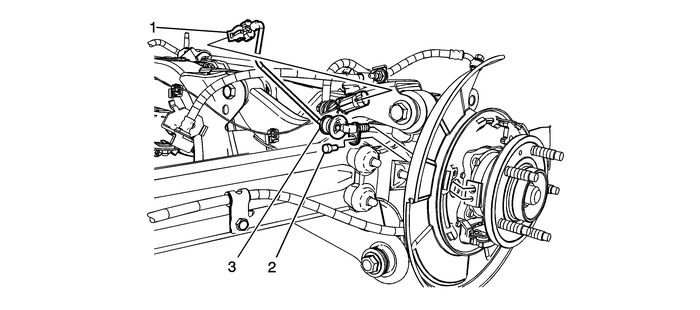

Callout

Component Name

Warning:Refer toBrake Dust Warning.

Preliminary ProceduresRaise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel. Refer toTire and Wheel Removal and Installation.Remove the park brake shoes. Refer toParking Brake Shoe Replacement.

1

Wheel Speed Sensor Electrical Connector

2

Wheel Speed Sensor Bolt

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

3

Wheel Speed Sensor

ProcedureRelease the wheel speed sensor electrical harness grommetfrom the backing plate.Route the wheel speed sensor electrical harness through thebacking plate.
Fastener Tightening Specifications - ABS Control Dynamics Control ABS Control
Fastener Tightening SpecificationsApplicationSpecificationMetricEnglishBrake Pipe Fitting21-Y16-lb-ftBrake Pressure Modulator Valve (BPMV) Bolt10-Y89-lb-inBPMV Bracket Bolt10-Y89-lb-inBPMV Bracket Nut ...
