Chevrolet Equinox Service Manual: Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

Chevrolet Equinox Service Manual / Chassis / Brake Control and Vehicle Dynamics / Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

Removal Procedure

Warning:Refer toBrake Dust Warning.

Raise and support the vehicle. Refer toLifting and Jacking the Vehicle.Remove the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.Disconnect the wheel speed sensor electricalconnector.

Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

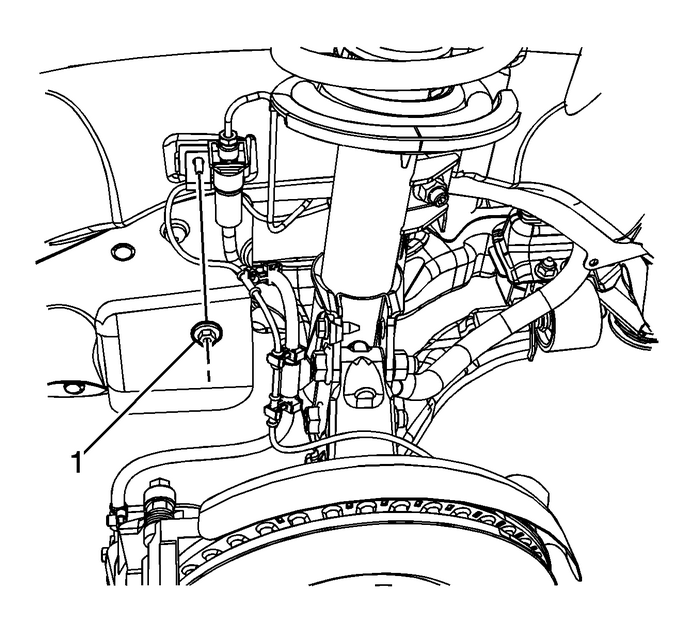

Remove the front brake hose bracketnut-(1).Release the front wheel speed sensor harness from theretainers on the front brake hose.

Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

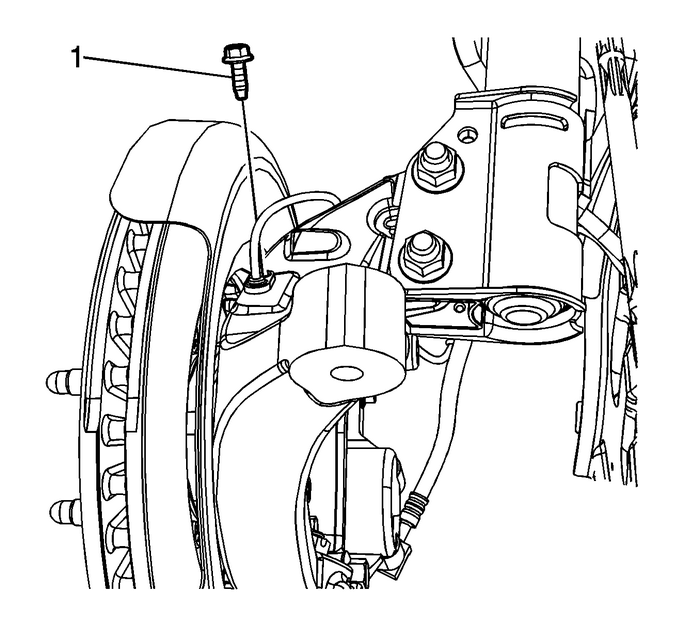

Remove the wheel speed sensor bolt-(1).

Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

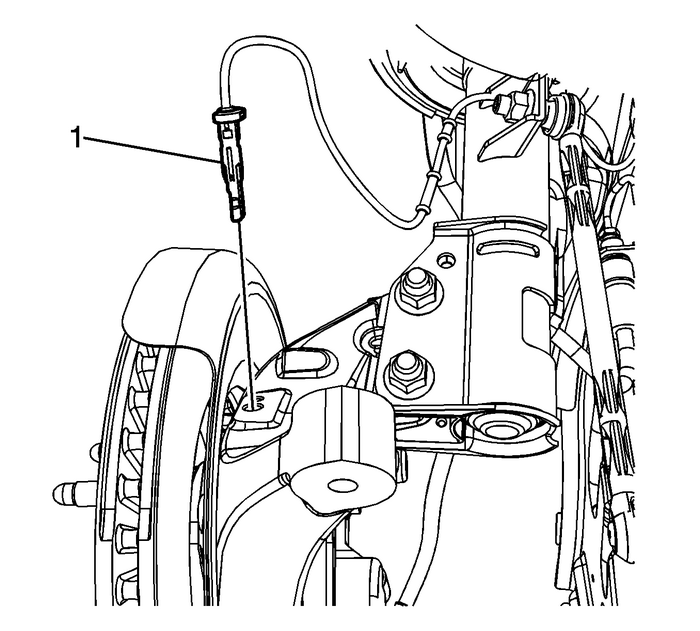

Remove the wheel speed sensor-(1)-bypulling the sensor straight upward from the steeringknuckle.Installation Procedure

Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

Install the wheel speed sensor-(1)-tothe steering knuckle.

Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

Caution:Refer toFastener Caution.

Install the wheel speed sensorbolt-(1)-and tighten to-10-Y(89-lb-in).

Front Wheel Speed Sensor Replacement Sensors Wheel Speed Sensors

Install the front brake hose bracketnut-(1)-and tighten to-10-Y(89-lb-in).Connect the wheel speed sensor electrical connector.Install the front wheel speed sensor harness to the retainerson the front brake hose.Install the tire and wheel assembly. Refer toTire and Wheel Removal and Installation.
