Camshaft Position Sensor Replacement - Intake Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor

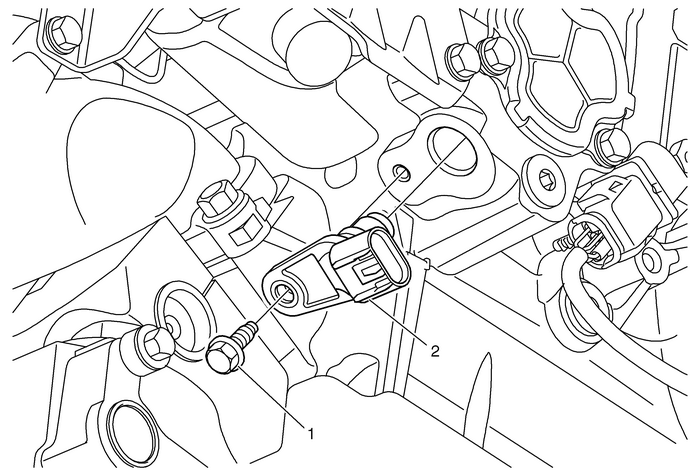

Camshaft Position Sensor Replacement - Intake

Callout

Component Name

Preliminary Procedure

Remove the fuel pump cover. Refer toFuel Pump Cover Replacement

1

Camshaft Position Sensor Fastener

Caution:Refer toFastener Caution

Tighten

10-Y-(89-lb-in)

2

Camshaft Position Sensor

Procedure

Disconnect the electrical connector.
