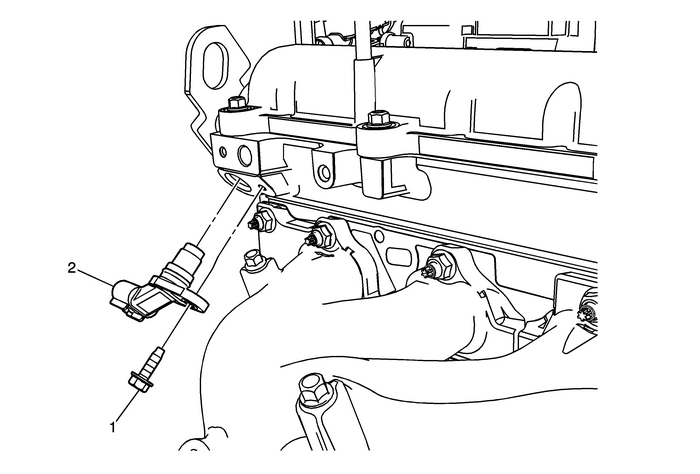

Camshaft Position Sensor Replacement - Exhaust

Callout

Component Name

Preliminary Procedure

Remove the intake manifold cover. Refer toIntake Manifold Cover Replacement.

1

Camshaft Position Sensor Fastener

Caution:Refer toFastener Caution.

Tighten

10-Y(89-lb-in)

2

Camshaft Position Sensor – Exhaust

ProcedureLube the O-ring with clean engine oil.Disconnect the electrical connector.
Camshaft Position Sensor Replacement - Bank 2 (Left Side) Intake Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor
Camshaft Position Sensor Replacement - Bank 2 (Left Side) IntakeCalloutComponent NamePreliminary ProcedureRemove the engine mount bracket. Refer toEngine Mount Bracket Replacement - Right Side.1Camsha ...

Camshaft Position Sensor Replacement - Intake Engine Control Engine Control Sensors Crankshaft/Camshaft/TDC Position Sensor
Camshaft Position Sensor Replacement - IntakeCalloutComponent NamePreliminary ProcedureRemove the fuel pump cover. Refer toFuel Pump Cover Replacement1Camshaft Position Sensor FastenerCaution:Refer to ...
