Chevrolet Equinox Service Manual: Valve Lifter Replacement - Left Side

Chevrolet Equinox Service Manual / Powertrain / Engine / Valve Lifter Replacement - Left Side

Removal Procedure

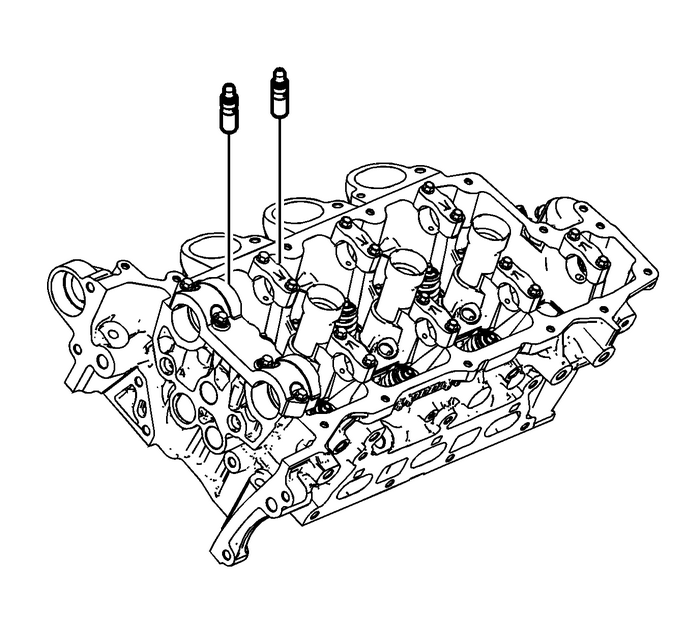

Valve Lifter Replacement - Left Side

Remove the applicable camshafts. Refer toCamshaft Replacement - Left Side.Remove the rocker arms. Refer toValve Rocker Arm Replacement - Left Side.Remove the lifters. Refer toValve Lifter Removal - Left SideClean and inspect the camshafts, rocker arms and lifters.Repair or replace as necessary. Refer toCamshaft Cleaning and InspectionandValve Lifter Cleaning and Inspection.Clean and inspect the rocker arm. Refer toValve Rocker Arm Cleaning and InspectionInstallation Procedure

Valve Lifter Replacement - Left Side

Install the lifters.Install the rocker arms. Refer toValve Rocker Arm Replacement - Left Side.Install the camshafts. Refer toCamshaft Replacement - Left Side.
