Turn Signal Switch Bracket Replacement Lighting Exterior Lighting Turn Signal and Hazard Lamps

Turn Signal Switch Bracket Replacement

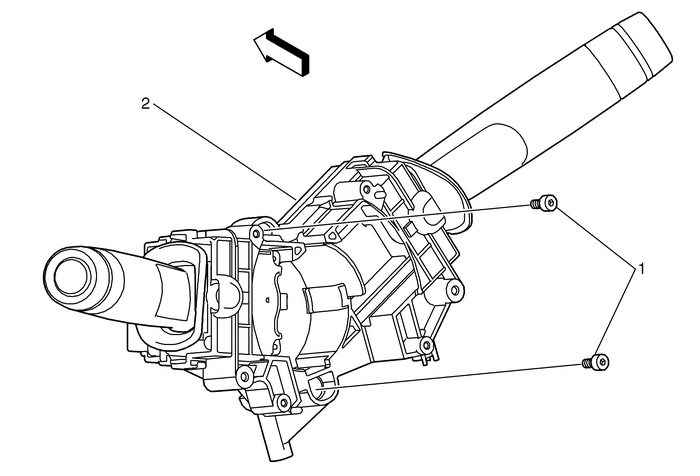

Callout

Component Name

Preliminary Procedure

Remove the inflatable restraint steering wheel module coil.Refer toSteering Wheel Airbag Coil Replacement.

1

Turn Signal Switch Bracket Fastener(Qty:-2)

2

Turn Signal Switch Bracket

ProcedureDisconnect any electrical connectors as needed.Transfer any parts as needed.
