Chevrolet Equinox Service Manual: Transmission Parts Kit Specifications Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Transmission Parts Kit Specifications Automatic Transmission Unit

Table 1: Clutch Plate Pack 24240100
Table 2: Front Wheel Drive Shaft Seal Kit 19258265
Table 3: Front Wheel Drive Shaft Seal Kit 19258266
Table 4: Control Valve Body Kit 24248118
Table 5: A/Trans Service Seal Kit (1 of 2) 24253594
Table 6: A/Trans Service Seal Kit (2 of 2) 24253594
Table 7: A/Trans Service Seal Kit 24256112
Table 8: Control Valve Body Kit 24256111
Table 9: A/Trans Service Seal Kit 24240103
Table 10: A/Trans Service Seal Kit 2 24240103
Table 11: A/Trans Service Seal Kit 24240106

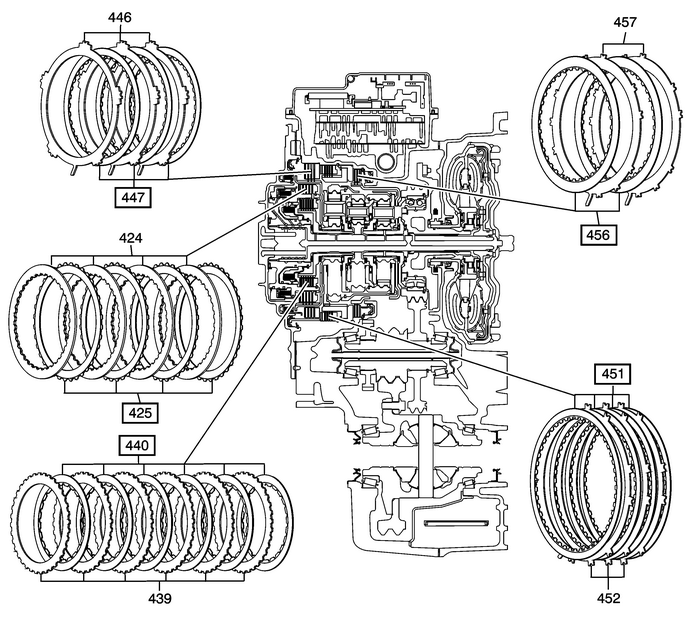

Clutch Plate Pack 24240100

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Clutch Plate Pack 24240100

Callout

Quantity

Component Name

425

4

3-5-Reverse Clutch (w/Friction Material) PlateAssembly

440

6

4-5-6 Clutch (w/Friction Material) Plate Assembly

447

3

2-6 Clutch (w/Friction Material) Plate Assembly

451

4

Low and Reverse Clutch (w/Friction Material) PlateAssembly

456

2

1-2-3-4 Clutch (w/Friction Material) Plate Assembly

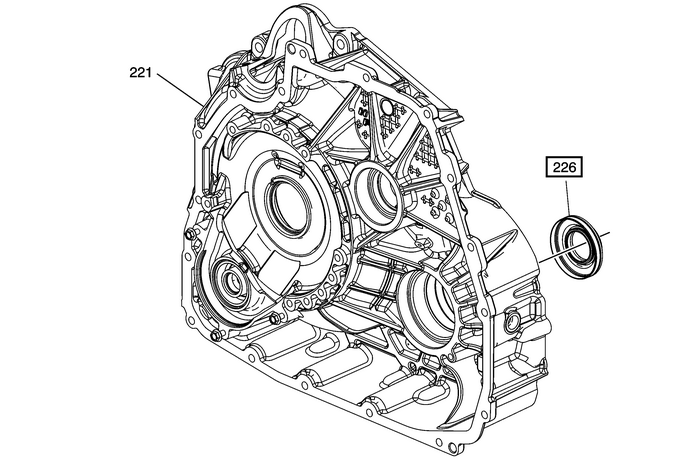

Front Wheel Drive Shaft Seal Kit 19258265

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

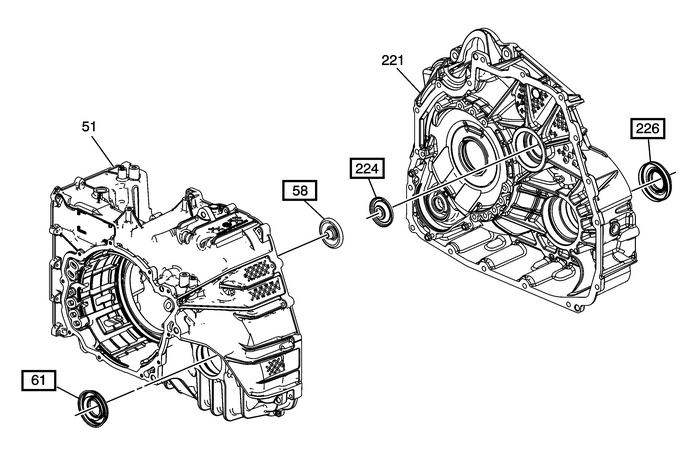

Front Wheel Drive Shaft Seal Kit 19258265

Callout

Quantity

Component Name

226

1

Front Wheel Drive Shaft Oil (RHS )Seal Assembly

X

1

Seal Protector (Not Shown)

Front Wheel Drive Shaft Seal Kit 19258266

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

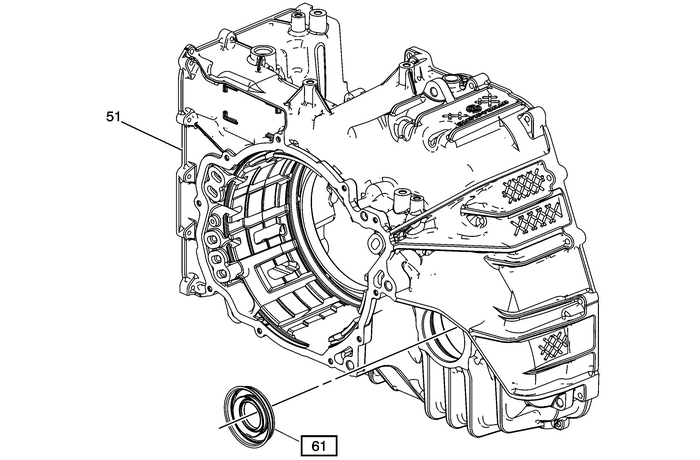

Front Wheel Drive Shaft Seal Kit 19258266

Callout

Quantity

Component Name

61

1

Front Wheel Drive Shaft Oil Seal Assembly

X

1

Seal Protector (Not Shown)

Control Valve Body Kit 24248118

Transmission Parts Kit Specifications Automatic Transmission Unit

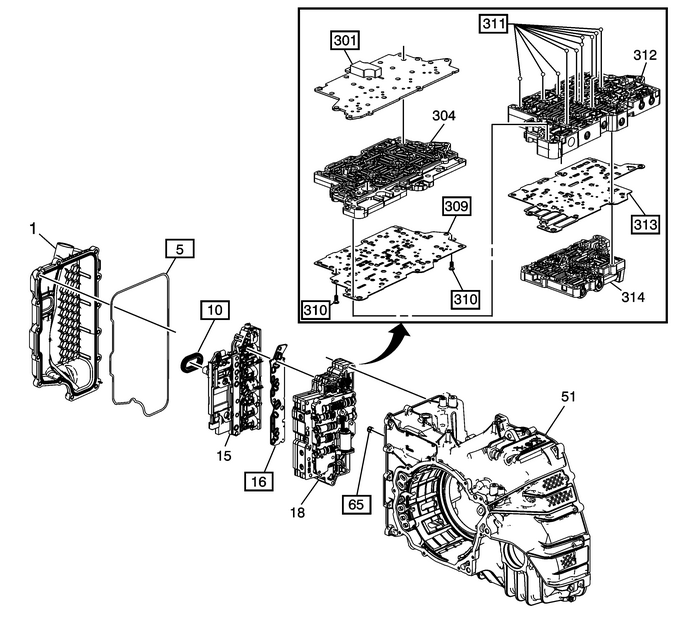

Control Valve Body Kit 24248118

Callout

Quantity

Component Name

5

1

Control Valve Body Cover Assembly Gasket

10

1

Control Valve Body Cover Wiring Connector Hole Seal

16

1

Control Solenoid (w/Body and TCM) Filter PlateAssembly

65

1

1-2-3-4 Clutch Fluid Passage Seal

301

1

Control Valve Channel Upper Plate Assembly

309

1

Control Valve Upper Body Spacer Plate Assembly

310

2

Control Valve Upper Body Spacer Plate Retainer

311

10

Control Valve Body Ball Check Valve

313

1

Control Valve Lower Body Spacer Plate Assembly

A/Trans Service Seal Kit (1 of 2) 24253594

Transmission Parts Kit Specifications Automatic Transmission Unit

224

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

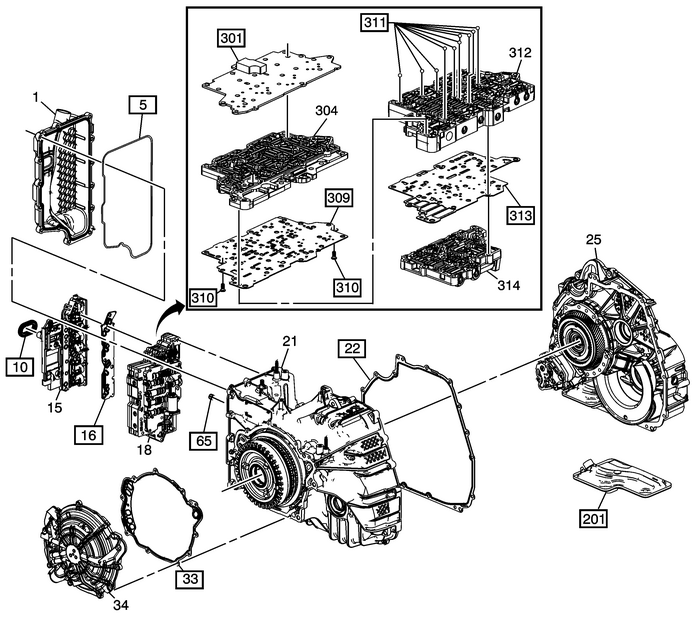

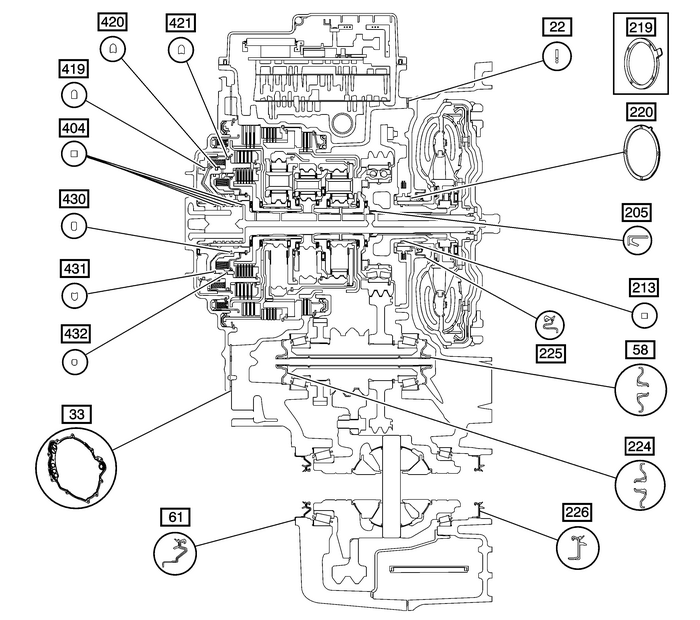

A/Trans Service Seal Kit (1 of 2) 24253594

Callout

Quantity

Component Name

22

1

Torque Converter Housing Outer Seal

33

1

A/Trans Case Cover Gasket

58

1

Front Differential Drive Pinion Gear Lube Dam

61

1

Front Wheel Drive Shaft Oil Seal Assembly

205

1

Front Differential Transfer Drive Gear Support SealAssembly

213

1

Front Differential Transfer Drive Gear Support Seal

219

1

Drive Sprocket Thrust Washer

220

1

Drive Sprocket Thrust Washer

224

1

Front Differential Drive Pinion Gear Lube Dam

225

1

Torque Converter Fluid Seal Assembly

226

1

Front Wheel Drive Shaft Oil Seal Assembly

404

4

3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring

419

1

3-5-Reverse Clutch Piston Inner Seal

420

1

3-5-Reverse Clutch Piston Inner Seal

421

1

3-5-Reverse Clutch Piston Dam Seal

430

1

4-5-6 Clutch Piston Inner Seal

431

1

4-5-6 Clutch Piston Outer Seal

432

1

4-5-6 Clutch Piston Outer Seal

X

2

Trans Fluid Cooler Pipe Washer (Not Shown)

X

1

Axle Seal Protector (Not Shown)

A/Trans Service Seal Kit (2 of 2) 24253594

Transmission Parts Kit Specifications Automatic Transmission Unit

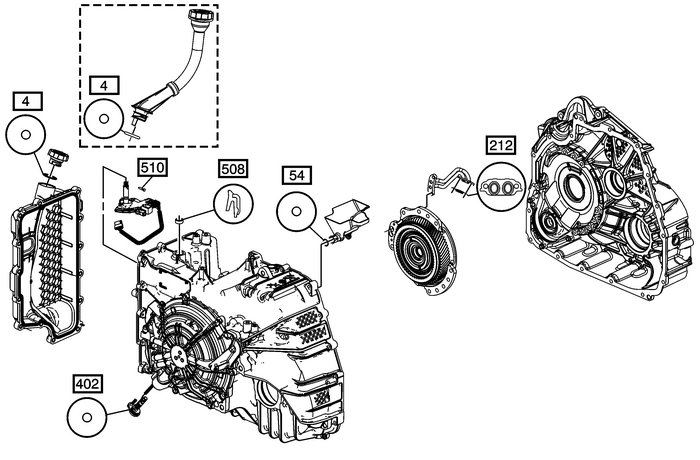

A/Trans Service Seal Kit (2 of 2) 24253594

Callout

Quantity

Component Name

4

1

Fluid Level Indicator Tube Seal - Model Dependent

54

1

A/Trans Fluid Trough O-Ring Seal

57

1

A/Trans Pump Fluid Outlet Seal Assembly

201

1

A/Trans Fluid Filter Assembly

202

1

Filter Neck Seal

206

1

Front Differential Transfer Drive Gear Support TorqueConverter Fluid Seal Assembly

212

1

Front Differential Transfer Drive Gear Support Fluid PassageTube Gasket

402

1

ISS O-Ring Seal

508

1

Manual Shift Shaft Seal

510

1

Manual Shift Shaft Pin

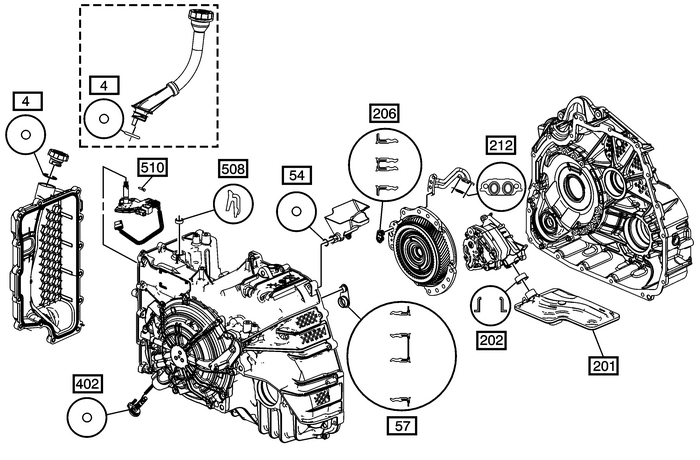

A/Trans Service Seal Kit 24256112

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Service Seal Kit 24256112

Callout

Quantity

Component Name

58

1

Front Differential Drive Pinion Gear Lube Dam

61

1

Front Wheel Drive Shaft Oil Seal Assembly

224

1

Front Differential Drive Pinion Gear Lube Dam

226

1

Front Wheel Drive Shaft Oil (RHS) Seal Assembly

Control Valve Body Kit 24256111

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

Control Valve Body Kit 24256111

Callout

Quantity

Component Name

5

1

Control Valve Body Cover Assembly Gasket

10

1

Control Valve Body Cover Wiring Connector Hole Seal

16

1

Control Solenoid (w/Body and TCM) Filter PlateAssembly

22

1

Torque Converter Housing Outer Seal

33

1

A/Trans Case Cover Gasket

65

1

1-2-3-4 Clutch Fluid Passage Seal

201

1

A/Trans Fluid Filter Assembly

301

1

Control Valve Channel Upper Plate Assembly

309

1

Control Valve Upper Body Spacer Plate Assembly

310

2

Control Valve Upper Body Spacer Plate Retainer

311

10

Control Valve Body Ball Check Valve

313

1

Control Valve Lower Body Spacer Plate Assembly

A/Trans Service Seal Kit 24240103

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

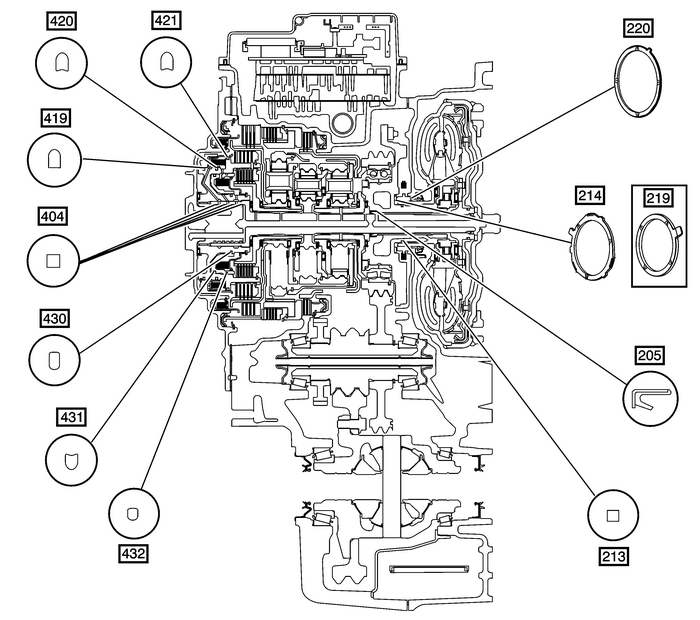

A/Trans Service Seal Kit 24240103

Callout

Quantity

Component Name

205

1

Front Differential Transfer Drive Gear Support SealAssembly

213

1

Front Differential Transfer Drive Gear Support Seal

214

1

Drive Sprocket Thrust Washer

219

1

Drive Sprocket Thrust Washer

220

1

Drive Sprocket Thrust Washer

404

4

3-5-Reverse and 4-5-6 Clutch Fluid Seal Ring

419

1

3-5-Reverse Clutch Piston Inner Seal

420

1

3-5-Reverse Clutch Piston Inner Seal

421

1

3-5-Reverse Clutch Piston Dam Seal

430

1

4-5-6 Clutch Piston Inner Seal

431

1

4-5-6 Clutch Piston Outer Seal

432

1

4-5-6 Clutch Piston Outer Seal

X

2

Trans Fluid Cooler Pipe Washer (Not Shown)

A/Trans Service Seal Kit 2 24240103

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

A/Trans Service Seal Kit 2 24240103

Callout

Quantity

Component Name

4

1

Fluid Level Indicator Tube Seal - Model Dependent

54

1

A/Trans Fluid Trough O-Ring Seal

212

1

Front Differential Transfer Drive Gear Support Fluid PassageTube Gasket

402

1

ISS O-Ring Seal

508

1

Manual Shift Shaft Seal

510

1

Manual Shift Shaft Pin

A/Trans Service Seal Kit 24240106

Transmission Parts Kit Specifications Automatic Transmission Unit

Note:Callouts with boxes around them indicate part is included inthe service kit. Callouts without boxes are shown for relationshippurposes only.

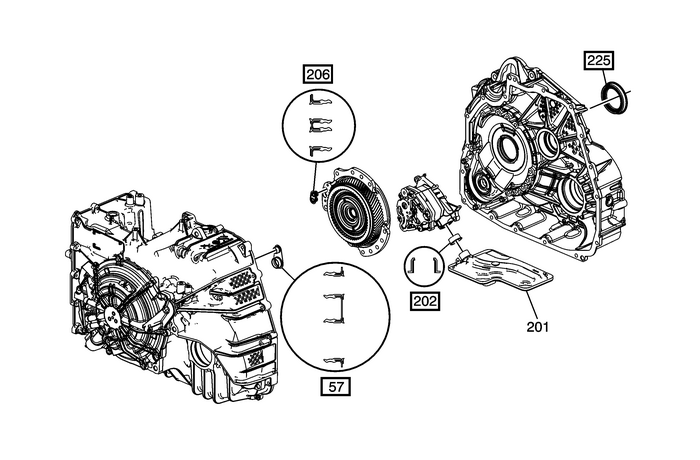

A/Trans Service Seal Kit 24240106

Callout

Quantity

Component Name

57

1

A/Trans Pump Fluid Outlet Seal Assembly

202

1

Filter Neck Seal

206

1

Front Differential Transfer Drive Gear Support TorqueConverter Fluid Seal Assembly

225

1

Torque Converter Fluid Seal Assembly

X

1

Front Wheel Drive Shaft Oil Seal Protector (Not Shown)
