| Table 1: | Control Valve Body Cover Removal |
| Table 2: | Control Solenoid (w/Body and TCM) Valve Assembly Removal |
| Table 3: | Control Valve Body Assembly and Output Speed Sensor Removal |

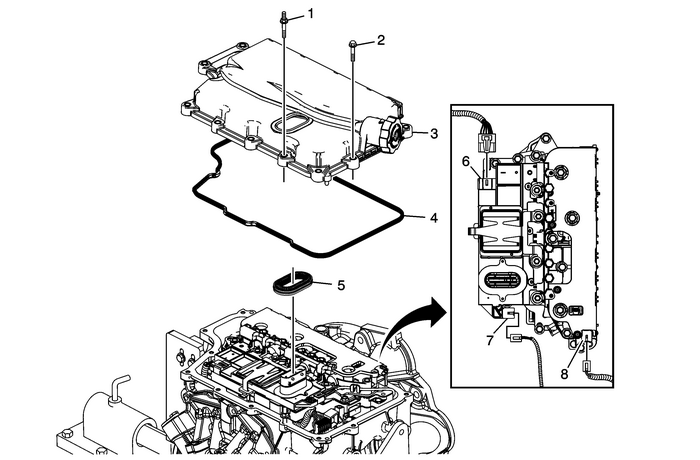

1 | Control Valve Body Cover Stud-M6-x-30 (Qty: 3) |
2 | Control Valve Body Cover Bolt-M6-x-30 (Qty: 11) |
3 | Control Valve Body Cover |
4 | Control Valve Body Cover Gasket Note:Do not re-use the valve body cover gasket. |
5 | Control Valve Body Cover Wiring Connector Hole Seal Caution:Support the control solenoid valve assembly around theconnector when removing the seal. Excessive pulling force candamage the internal electrical connections. |
6 | Shift Position Switch Connector |
7 | Output Speed Sensor Connector |
8 | Input Speed Sensor Connector |

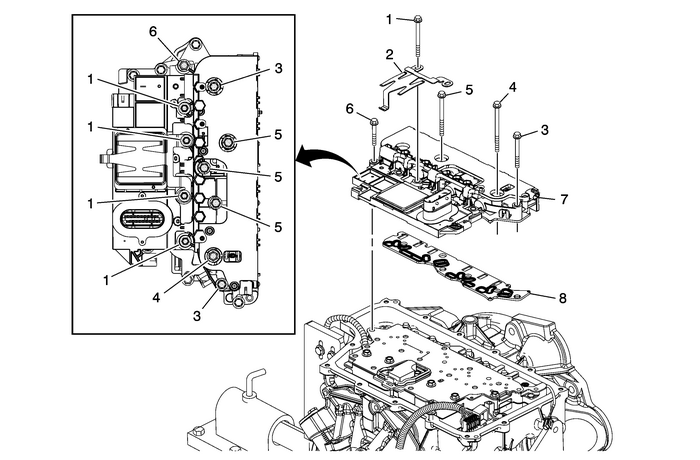

1 | Control Valve Body Bolt-M6-x-80 (Qty: 4) |
2 | Control Solenoid Valve Spring |
3 | Control Valve Body Bolt-M6-x-65 (Qty: 2) |
4 | Control Valve Body Bolt-M6-x-42 (Qty: 1) |
5 | Control Valve Body Bolt-M6-x-95 (Qty: 3) |
6 | Control Valve Body Bolt-M6-x-55 (Qty: 1) |
7 | Control Solenoid (w/Body and TCM) Valve Assembly |
8 | Control Solenoid Valve Assembly Filter Plate Caution:Use care when removing or installing the filter plateassembly. A broken or missing retaining tab may not adequatelysecure the filter plate to the control solenoid valve assembly,resulting in possible damage or contamination. Note:Discard the filter plate, it is not reusable. |

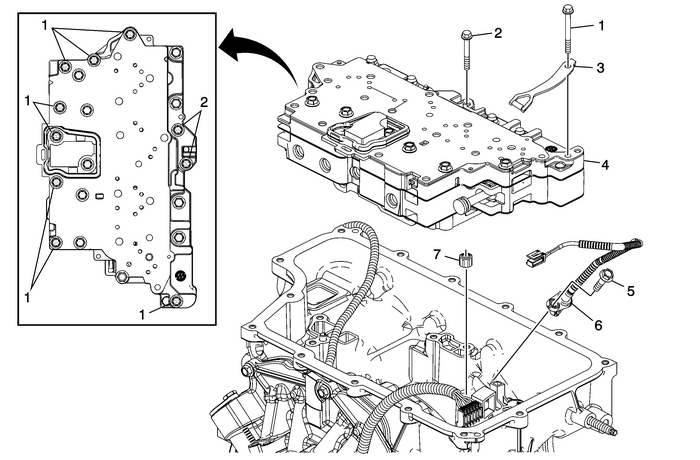

1 | Control Valve Body Bolt-M6-x-65 (Qty: 8) |
2 | Control Valve Body Bolt-M6-x-55 (Qty: 2) |
3 | Manual Shaft Detent Assembly |
4 | Control Valve Body Assembly |
5 | A/Trans Output Speed Sensor Bolt-M6-x-25 |
6 | A/Trans Output Speed Sensor |
7 | 1–2–3–4 Clutch Fluid Passage Seal Note:The seal is not reusable. |
