Chevrolet Equinox Service Manual: Transmission Fluid Pump Assemble (6T40/45/50) Automatic Transmission Unit

Chevrolet Equinox Service Manual / Powertrain / Transmission/Transaxle / Transmission Fluid Pump Assemble (6T40/45/50) Automatic Transmission Unit

Table 1: Fluid Pump w/Valve Trains Assemble
Table 2: Torque Converter Fluid Seal and Fluid Filter Assembly Assemble
Fluid Pump w/Valve Trains Assemble

Transmission Fluid Pump Assemble (6T40/45/50) Automatic Transmission Unit

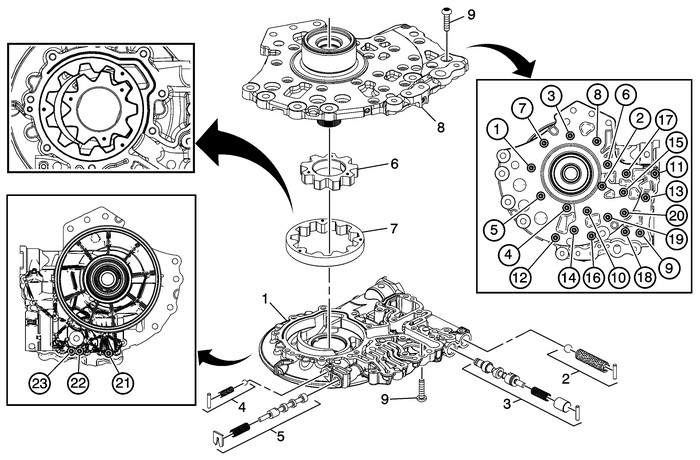

Fluid Pump w/Valve Trains Assemble

Callout

Component Name

1

A/Trans Fluid Pump Body

2

Fluid Pump Blow Off Ball Valve Train

3

Pressure Regulator Valve Train

4

TCC Blow Off Ball Valve Train

5

TCC Control Valve Train

6

Fluid Pump Drive Gear

Note:

Align ID feature dots with the driven gear as shown above.The chamfer on the drive gear teeth faces the pump body.

7

Fluid Pump Driven Gear

Note:

Align ID feature dots with the drive gear as shown above, some models.The chamfer on the driven gear O.D. faces the pump body.

8

Fluid Pump Cover

9

Fluid Pump Cover Bolts-M6-x-25-(Qty:-23)

Caution:Refer toFastener Caution.

Tighten

12-Y (106-lb-in)

Torque Converter Fluid Seal and Fluid Filter Assembly Assemble

Transmission Fluid Pump Assemble (6T40/45/50) Automatic Transmission Unit

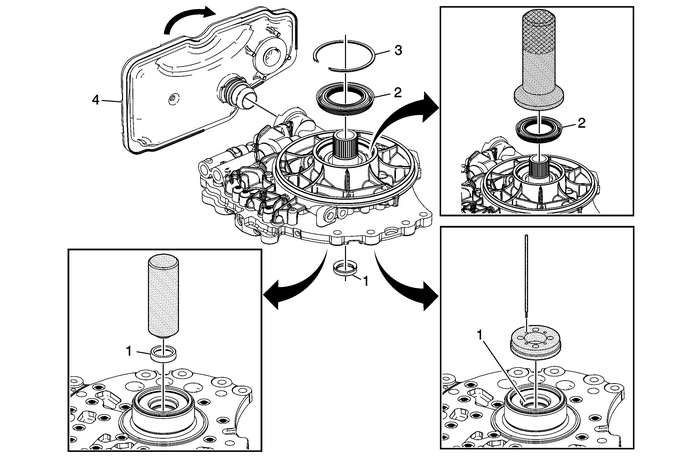

Torque Converter Fluid Seal and Fluid Filter Assembly Assemble

Callout

Component Name

1

Torque Converter Fluid Seal Assembly

Note:The fluid seal assembly must be staked in place using DT-49131 seal staking tool to ensure proper seal retention.

Special ToolDT-47792 Seal InstallerDT-49131 Seal Staking Tool

For equivalent regional tools, refer toSpecial Tools.

2

Torque Converter Fluid Seal

Special Tool

DT-47791-A Seal Installer

For equivalent regional tools, refer toSpecial Tools.

3

Torque Converter Fluid Seal Retainer

4

Fluid Filter Assembly

Note:Rotate filter 90-degrees to engage locking tangs.
