Transmission Fluid Drain and Fill Automatic Transmission Unit

Transmission Fluid Drain and Fill

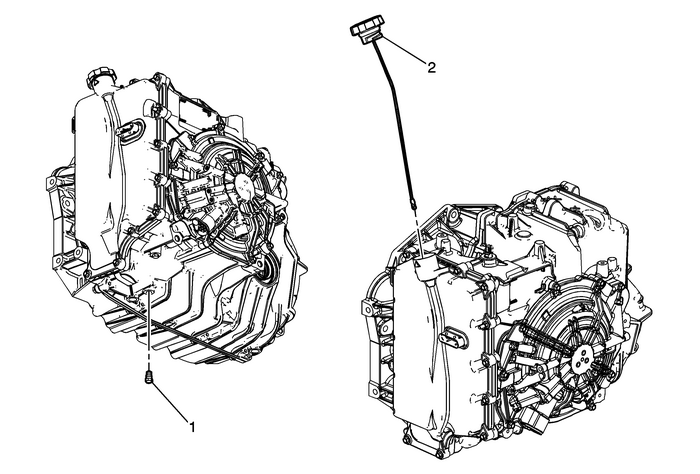

Callout

Component Name

Preliminary Procedure

Raise the vehicle. Refer toLifting and Jacking the Vehicle.

Fluid Drain Plug

Caution:Refer toFastener Caution.

Tip:Place a drain pan capable of containing more than5-quarts of fluid under the transmission before removingthe plug to drain the fluid.

Tighten

12-Y(106-lb-in)

Fluid Level Indicator

Tip:

Transmission will require approximately 5-quartsof fluid.Fill the transmission with fluid. Refer toTransmission Fluid Level and Condition Check.
