Transmission Control Lever Knob Replacement Automatic Transmission Unit

Transmission Control Lever Knob Replacement

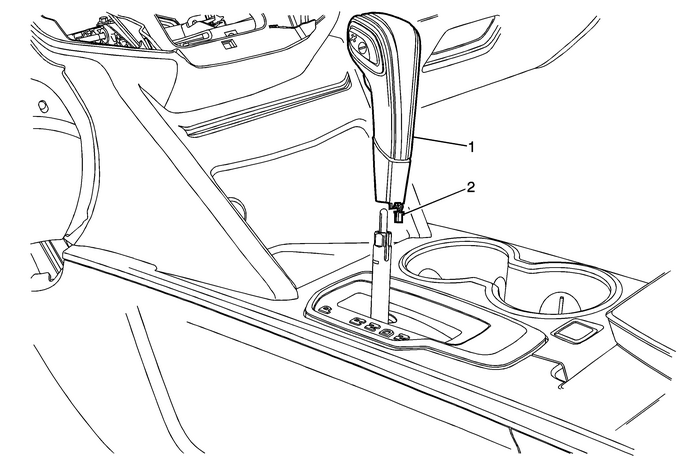

Callout

Component Name

1

Shift Control Knob

Tip:Pull knob up off shift lever. Considerable effort may berequired to remove knob from shift control lever.

Place shift lever in the Neutral position.

2

Shift Control Connector

Procedure

Verify the operation of the tap up, tap down switch.

Tip:To install, use a small flat tool to push connector intoreceiving connector.
