Tail Lamp Bulb Replacement Lighting Exterior Lighting Tail Lamp

Tail Lamp Bulb Replacement

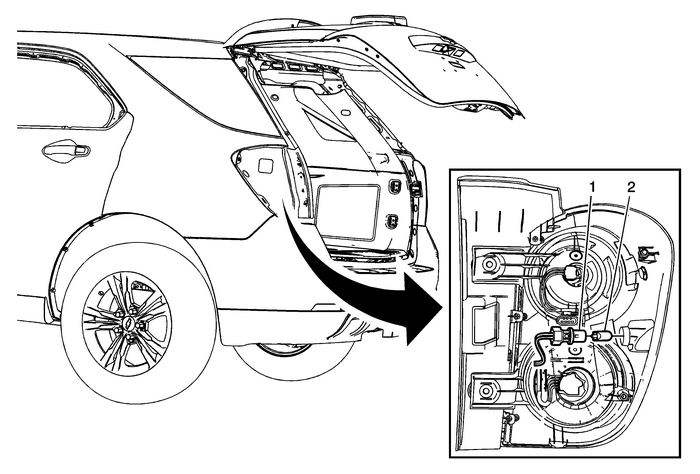

Callout

Component Name

Preliminary Procedure

Remove either the Left or Right tail lamp assembly. Refer toTail Lamp Replacement.

1

Tail Lamp Bulb Socket

Warning:Refer toHalogen Bulb Warning.

Procedure

Disengage the tail lamp bulb socket from the lamp assembly byturning the socket counterclockwise a quarter turn.

2

Tail Lamp Bulb

Tail Lamp Applique Replacement (Terrain) Lighting Exterior Lighting Tail Lamp
Tail Lamp Applique ReplacementCalloutComponent NamePreliminary ProceduresOpen and suitably support the rear liftgate.Remove the liftgate lower trim finish panel. Refer toLiftgate Lower Trim Finish Pan ...

Tail Lamp Bulb Replacement (Terrain) Lighting Exterior Lighting Tail Lamp
Tail Lamp Bulb ReplacementCalloutComponent NamePreliminary ProcedureRemove the tail lamp applique. Refer toTail Lamp Applique Replacement.1Auxiliary Tail Lamp Bulb Socket (Qty-:2)ProcedureWarning:When ...
